DC08-11SURKWA - Kingbright

Description: LED Displays & Accessories .8" DUAL DIGIT RED LED DISPLAY

Download DC08-11SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

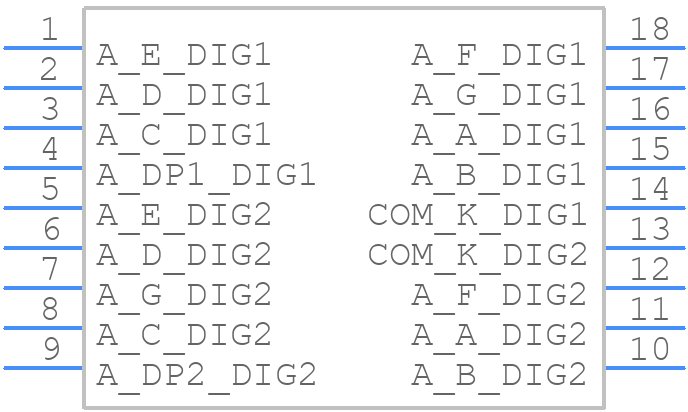

DC08-11SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

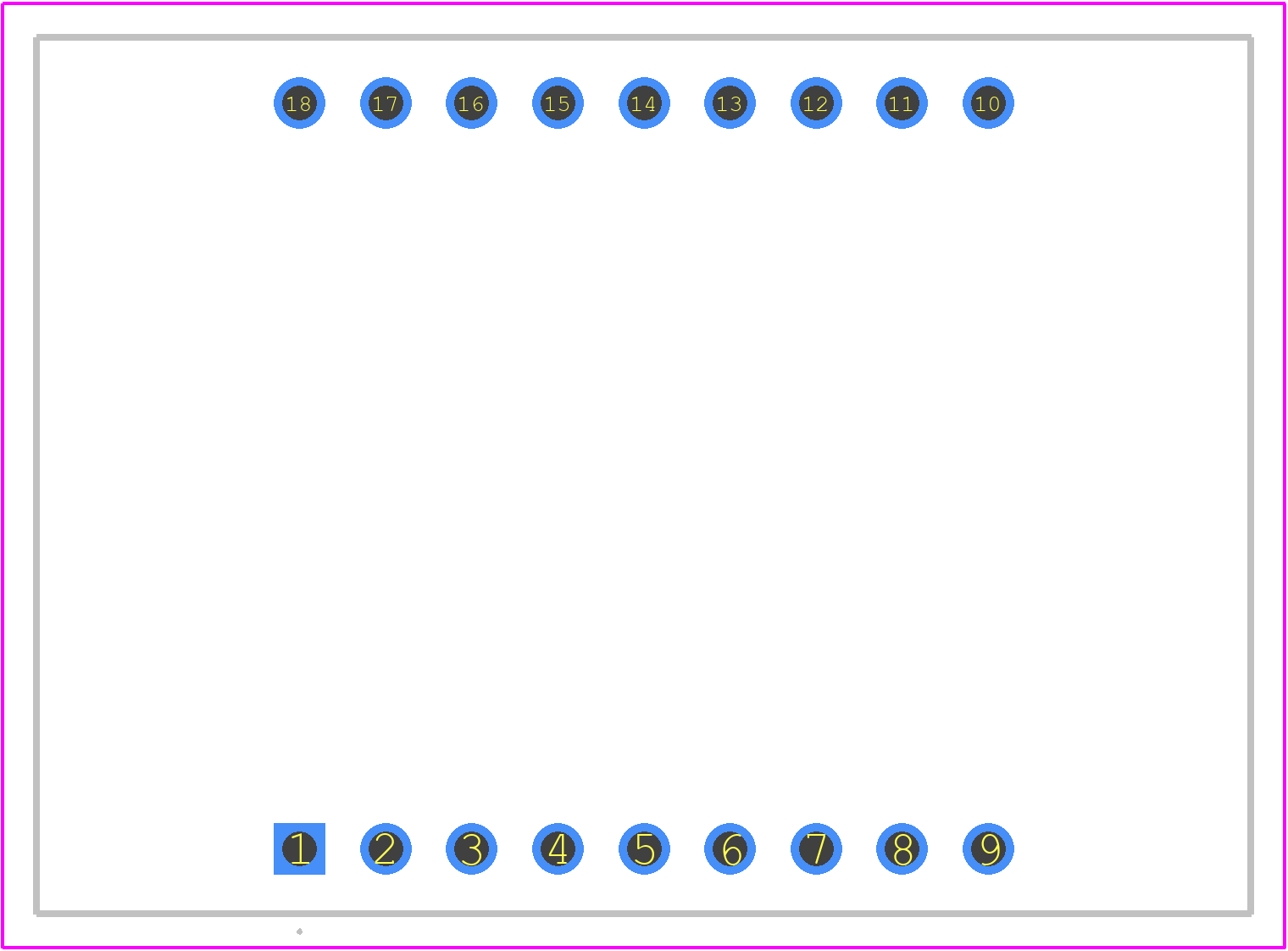

DC08-11SURKWA - Kingbright PCB footprint - Other - Other - DC08-11SURKWA-2
click to zoom
3D Models
DC08-11SURKWA - Kingbright - 3D model - Other - DC08-11SURKWA-2
click to zoom

DC08-11SURKWA Details

  • Manufacturer Part Number:

    DC08-11SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

DC08-11SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for the DC08-11SURKWA is -20°C to 60°C, with a relative humidity of 60% or less.
  • Yes, the DC08-11SURKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
  • The typical junction temperature of the DC08-11SURKWA is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, the DC08-11SURKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile to avoid damage.
  • The recommended reflow soldering temperature profile for the DC08-11SURKWA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.
