DMMT5401-7-F - Diodes Incorporated

Description: Transistor Dual PNP 150V 0.2A SOT26-6 Diodes Inc DMMT5401-7-F Dual PNP Bipolar Transistor, -200 mA, -150 V, 6-Pin SOT-26

Download DMMT5401-7-F Model

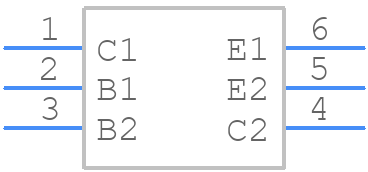

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMMT5401-7-F - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DMMT5401-7-F
click to zoom
3D Models
DMMT5401-7-F - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - DMMT5401-7-F
click to zoom

DMMT5401-7-F Details

  • Manufacturer Part Number:

    DMMT5401-7-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.2 A

  • Collector-Emitter Voltage-Max:

    150 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    50

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    0.3 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

DMMT5401-7-F Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the DMMT5401-7-F is a standard SOT23 package with a 1.8mm x 1.35mm body size. A minimum pad size of 0.5mm x 0.5mm is recommended for reliable soldering.
  • To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended operating temperature range (-40°C to 150°C). Additionally, consider using a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
  • The maximum allowable voltage for the DMMT5401-7-F is 40V. Exceeding this voltage may cause permanent damage to the device.
  • Yes, the DMMT5401-7-F can be used in switching regulator applications. However, ensure that the device is operated within its recommended switching frequency range (up to 100kHz) and that the output voltage is within the device's recommended operating range.
  • To handle ESD protection for the DMMT5401-7-F, ensure that the device is handled and stored in an ESD-protected environment. Use ESD-protective packaging and handling equipment, and consider adding ESD protection devices (such as TVS diodes) to the PCB design.
