The recommended PCB footprint for the DMN3190LDW-7 is a standard SOT23-6 package with a 1.5mm x 1.5mm body size. The recommended land pattern is available in the Diodes Incorporated's package outline drawing.
To ensure the DMN3190LDW-7 is properly biased, follow the recommended operating conditions and biasing circuitry shown in the datasheet. Additionally, ensure the input voltage is within the recommended range of 2.5V to 5.5V, and the output is properly terminated.
The maximum power dissipation of the DMN3190LDW-7 is 250mW. However, the actual power dissipation will depend on the operating conditions, such as input voltage, output current, and ambient temperature.
The DMN3190LDW-7 is a general-purpose N-channel MOSFET, and its frequency response is limited to around 100kHz. For high-frequency applications, a more specialized MOSFET with a higher frequency response may be required.
To protect the DMN3190LDW-7 from ESD, follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and bags. Additionally, ensure the device is properly grounded during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMN3190LDW-7 Overview

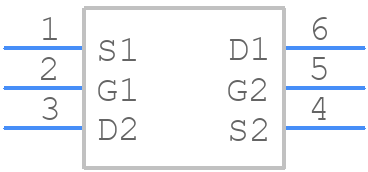

Use the download button to access the DMN3190LDW-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMN31,
or try a keyword search, such as Small Signal Field-Effect Transistors
