DP83826ERHBT - Texas Instruments

Description: Ethernet ICs Low latency 10/100-Mbps PHY with MII interface and enhanced mode 32-VQFN -40 to 105

Download DP83826ERHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

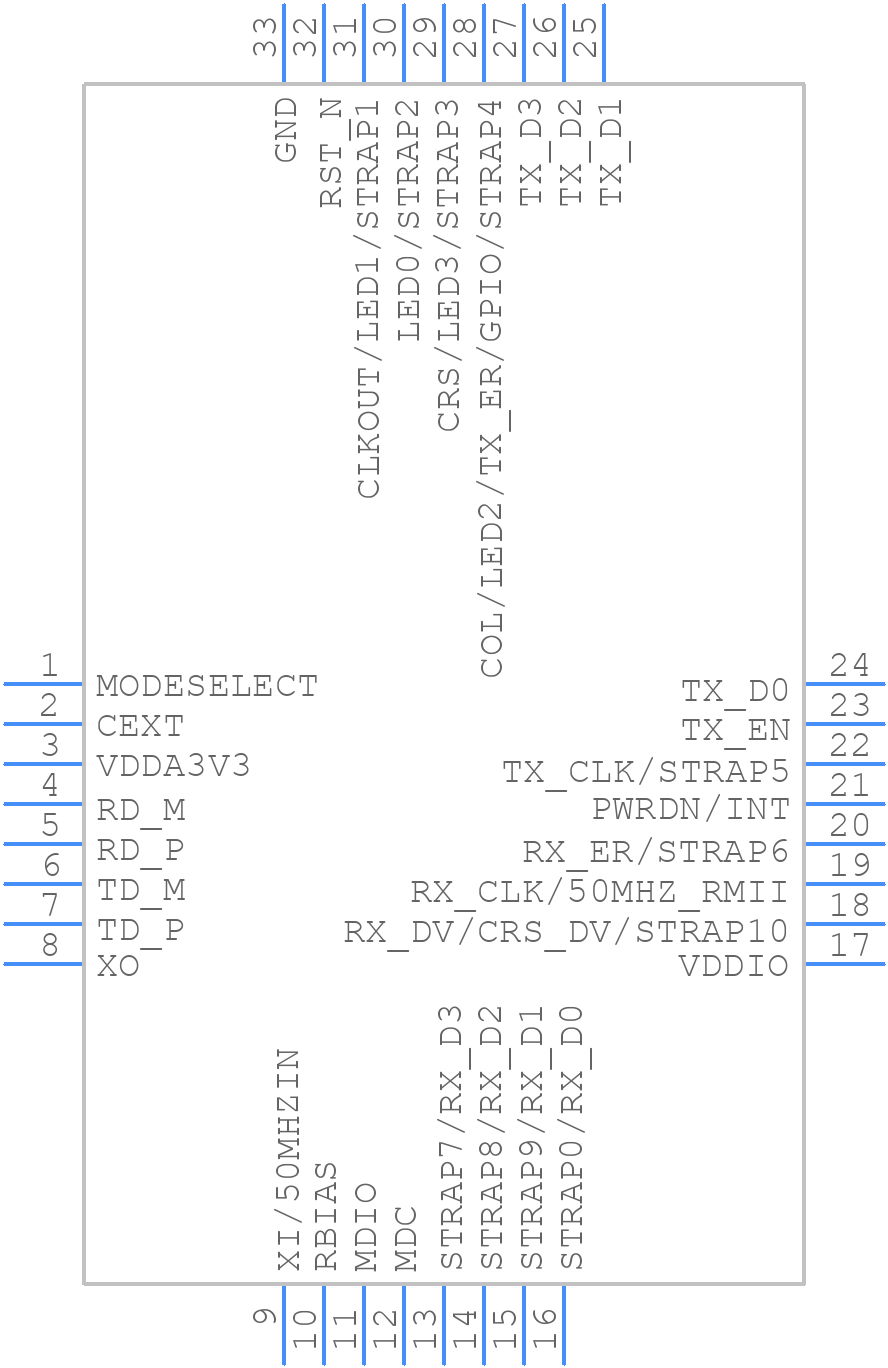

DP83826ERHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83826ERHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032M
click to zoom
3D Models
DP83826ERHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032M
click to zoom

DP83826ERHBT Details

  • Manufacturer Part Number:

    DP83826ERHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-01-02

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    IT ALSO HAS 3.3 SUPPLY VOLTAGE

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DP83826ERHBT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83826ERHBT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83826ERHBT can be configured using the TI's PHY Utility software, which provides a graphical user interface to configure the device's registers and settings for specific Ethernet applications.
  • The DP83826ERHBT supports cable lengths up to 100 meters, as specified in the IEEE 802.3 standard for Ethernet over twisted-pair cables.
  • The DP83826ERHBT has built-in power management features, including a low-power mode and a power-down mode, which can be controlled through the device's registers or through external signals.
  • The DP83826ERHBT has a maximum junction temperature of 150°C, and thermal management considerations include providing adequate heat sinking, using thermal vias, and ensuring good airflow around the device.
