DP83867CSRGZR - Texas Instruments

Description: Low-power, robust gigabit Ethernet PHY transceiver with SGMII

Download DP83867CSRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

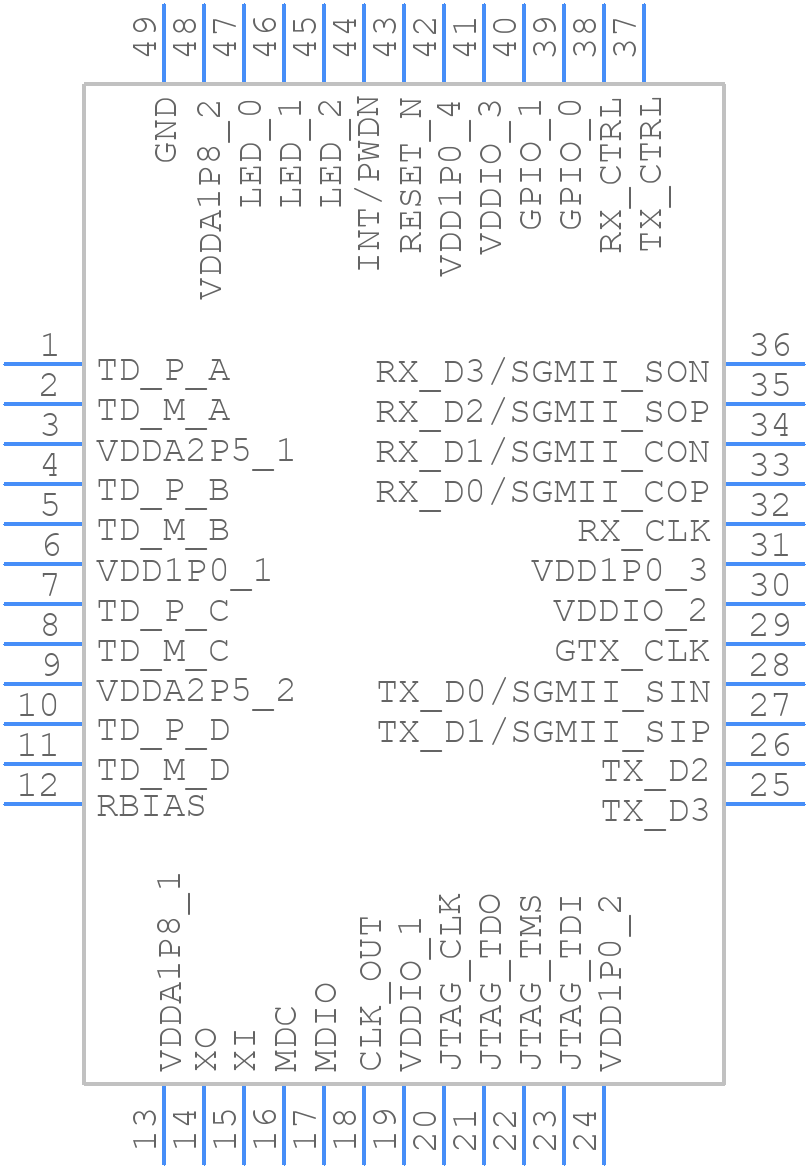

DP83867CSRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83867CSRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
DP83867CSRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

DP83867CSRGZR Details

  • Manufacturer Part Number:

    DP83867CSRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83867CSRGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83867CSRGZR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83867CSRGZR can be configured using the TI's Phy Utility software, which provides a graphical user interface for configuring the device's registers and settings. The software is available for download on the TI website.
  • The DP83867CSRGZR has a typical power consumption of 330 mW in 1000BASE-T mode and 240 mW in 10/100BASE-TX mode. The device also has a thermal shutdown feature that protects it from overheating. The thermal characteristics are specified in the datasheet.
  • Texas Instruments provides a troubleshooting guide for the DP83867CSRGZR, which includes steps for identifying and resolving common issues such as link faults, packet loss, and PHY register configuration errors.
  • Yes, the DP83867CSRGZR is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial Ethernet applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DP83867CSRGZR Overview

Use the download button to access the DP83867CSRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
