DP83867ISRGZR - Texas Instruments

Description: Gigabit Ethernet PHY Customized for Harsh Industrial Environments with SGMII

Download DP83867ISRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

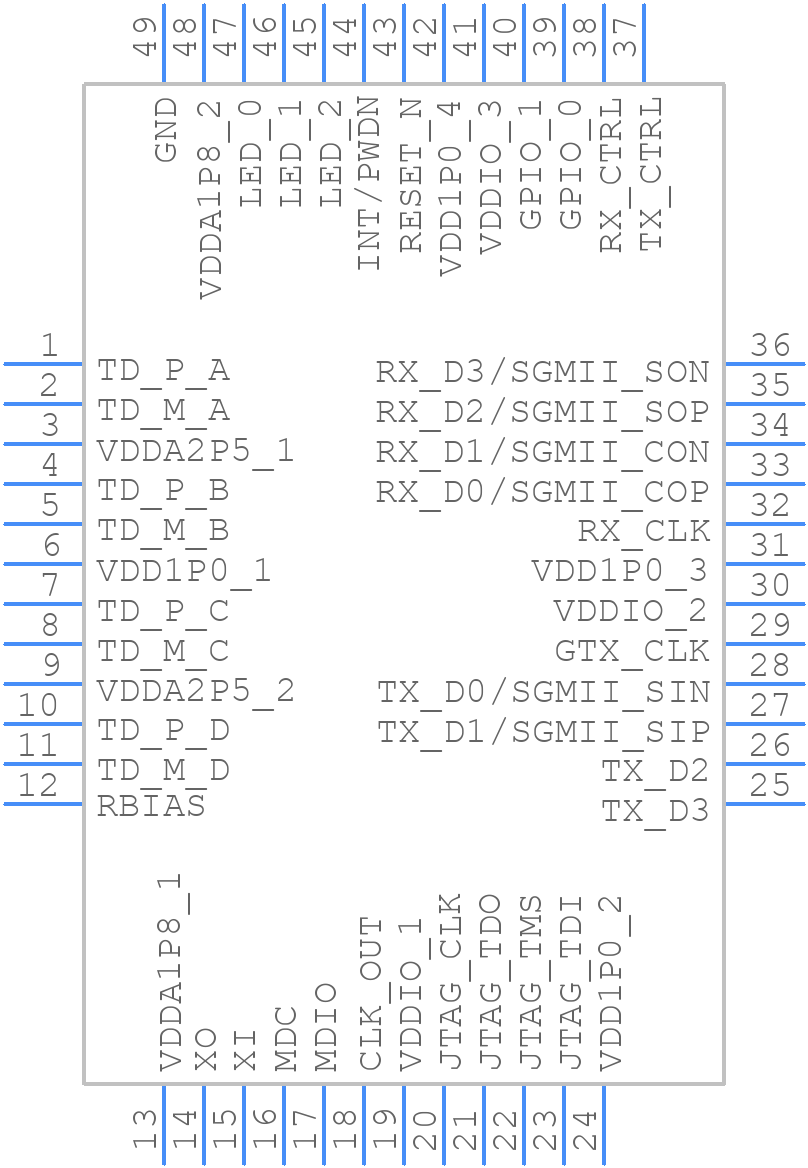

DP83867ISRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83867ISRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048B
click to zoom
3D Models
DP83867ISRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048B
click to zoom

DP83867ISRGZR Details

  • Manufacturer Part Number:

    DP83867ISRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83867ISRGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83867ISRGZR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83867ISRGZR can be configured using the TI's PHY Utility software, which provides a graphical user interface for configuring the device's registers and settings for specific Ethernet applications.
  • The DP83867ISRGZR has a typical power consumption of 330 mW in 1000BASE-T mode and 240 mW in 10/100BASE-TX mode. The device also has a thermal shutdown feature that protects it from overheating, with a junction temperature range of -40°C to 125°C.
  • Texas Instruments provides a troubleshooting guide for the DP83867ISRGZR, which includes steps for identifying and resolving common issues such as link faults, packet loss, and PHY register configuration errors.
  • Yes, the DP83867ISRGZR is rated for industrial temperature ranges, with an operating temperature range of -40°C to 85°C, making it suitable for use in industrial Ethernet applications.
