DP83867ISRGZT - Texas Instruments

Description: Gigabit Ethernet PHY Customized for Harsh Industrial Environments with SGMII

Download DP83867ISRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

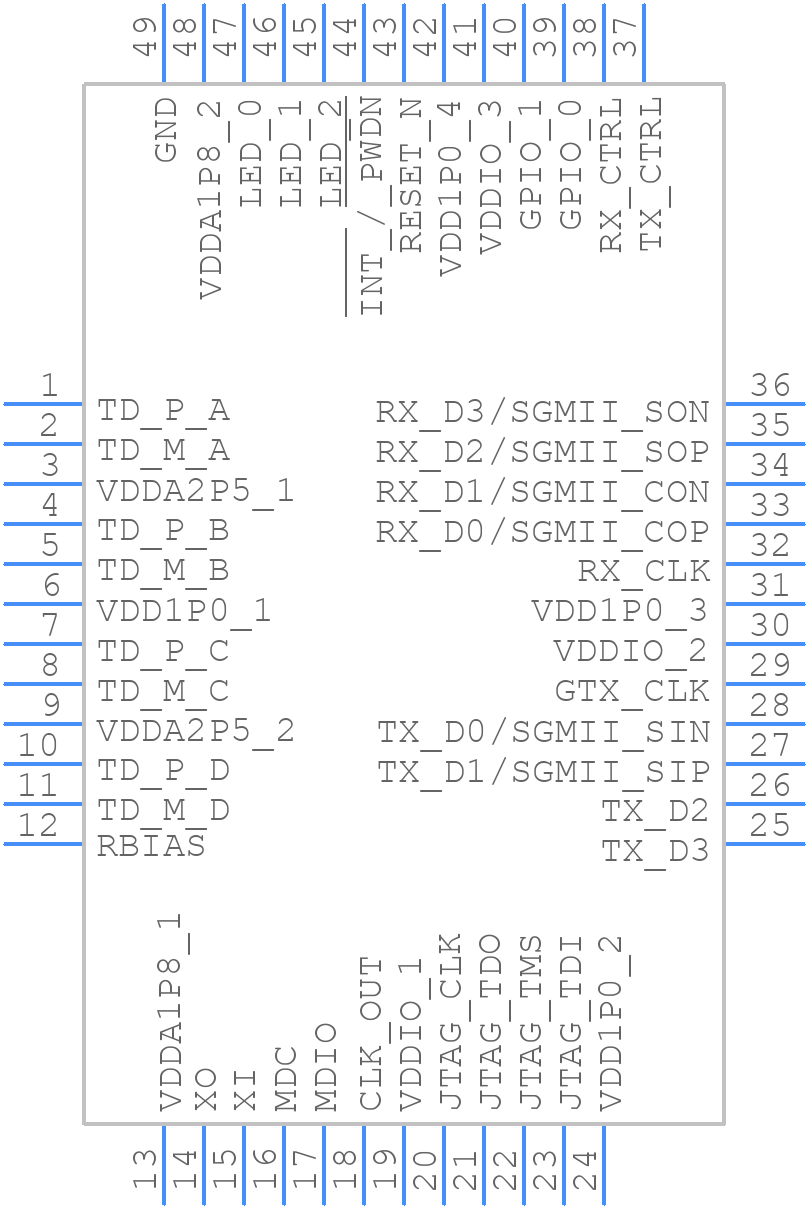

DP83867ISRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DP83867ISRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ (S-PVQFN-N48)_4.08TP
click to zoom
3D Models
DP83867ISRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ (S-PVQFN-N48)_4.08TP
click to zoom

DP83867ISRGZT Details

  • Manufacturer Part Number:

    DP83867ISRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    1000000 Mbps

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

DP83867ISRGZT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DP83867ISRGZT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management.
  • The DP83867ISRGZT can be configured using the TI's Phy Utility software, which provides a graphical user interface to configure the device's registers and settings for specific Ethernet applications.
  • The DP83867ISRGZT has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Additionally, the device has a thermal shutdown feature that can be enabled to prevent overheating.
  • Texas Instruments provides a troubleshooting guide for the DP83867ISRGZT, which includes steps to identify and resolve common issues such as link faults, packet loss, and PHY register configuration errors.
  • The DP83867ISRGZT has multiple power management modes, including Energy-Efficient Ethernet (EEE) and Wake-on-LAN (WOL), which can be configured to reduce power consumption and optimize system performance.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

DP83867ISRGZT Overview

Use the download button to access the DP83867ISRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DP838, or try a keyword search, such as Network Interfaces

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
