DRV10974PWPR - Texas Instruments

Description: 12W, 12V 3-Phase Sensorless BLDC Motor Driver

Download DRV10974PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

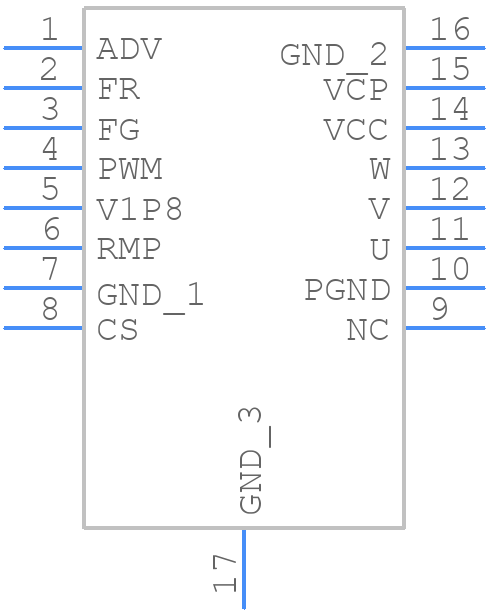

DRV10974PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10974PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DRV10974PWPR
click to zoom
3D Models
DRV10974PWPR - Texas Instruments - 3D model - Small Outline Packages - DRV10974PWPR
click to zoom

DRV10974PWPR Details

  • Manufacturer Part Number:

    DRV10974PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-03-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10974PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the DRV10974PWPR involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the motor. TI provides a recommended PCB layout in the datasheet and application notes.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A smaller sense resistor value provides higher accuracy but increases the power loss. TI provides a sense resistor calculation formula in the datasheet.
  • The DRV10974PWPR can handle up to 2A of motor current, but the actual current limit depends on the PCB layout, ambient temperature, and other factors. It's essential to follow the thermal design guidelines in the datasheet to ensure reliable operation.
  • The DRV10974PWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The device will shut down if the motor current exceeds the programmed threshold.
  • No, the DRV10974PWPR is designed for brushed DC motors only. For brushless DC motor control, you would need a different driver IC, such as the DRV8301 or DRV8323.
