DRV10975PWPR - Texas Instruments

Description: 12-V, 3-Phase, Sensorless BLDC Motor Controller

Download DRV10975PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

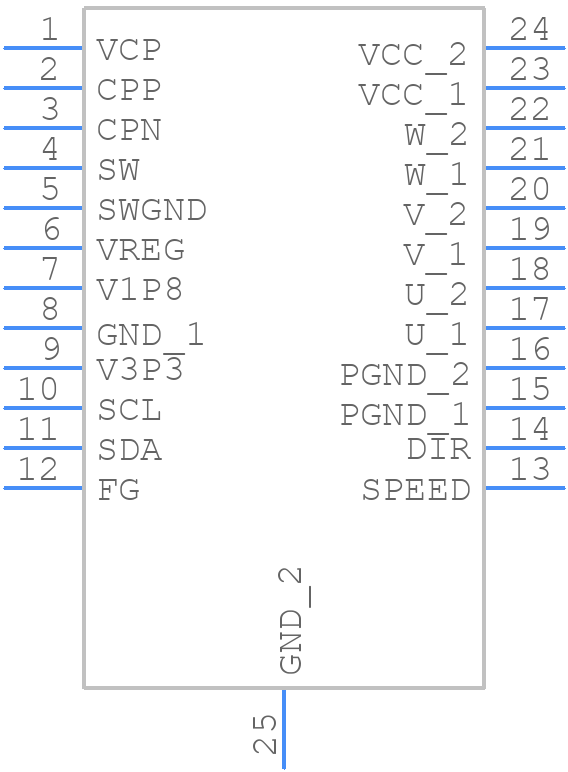

DRV10975PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV10975PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom
3D Models
DRV10975PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0024B
click to zoom

DRV10975PWPR Details

  • Manufacturer Part Number:

    DRV10975PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV10975PWPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV10975PWPR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of 50-200 mV at the maximum motor current. TI also provides a sense resistor calculator tool to help with the selection.
  • The DRV10975PWPR is rated for operation from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating, especially in high-current applications.
  • No, the DRV10975PWPR is designed specifically for brushed DC motors. It does not have the necessary commutation logic or phase control for brushless DC motors. TI offers other devices, such as the DRV8301, that are suitable for brushless DC motor control.
  • The DRV10975PWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a voltage source. The device will shut down if the motor current exceeds the programmed threshold. Additionally, an external overcurrent detection circuit can be implemented using a sense resistor and a comparator to provide more flexibility and customization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV10975PWPR Overview

Use the download button to access the DRV10975PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV10, or try a keyword search, such as Motion Control Electronics
