It is recommended to follow the layout and placement guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device.
To optimize LRA performance, ensure the LRA is properly matched to the DRV2605YZFR, adjust the resonance frequency to match the LRA's natural frequency, and adjust the drive voltage and current to optimize the vibration amplitude and frequency.
The maximum voltage that can be applied to the DRV2605YZFR is 5.5V, exceeding this voltage may cause damage to the device.
To troubleshoot issues, check the device's power supply, ensure proper connections, verify the LRA is properly connected and matched, and use an oscilloscope to verify the output waveform and frequency.
The DRV2605YZFR is optimized for use with LRAs, but it can be used with other types of haptic actuators, such as ERMs or CERAs, with proper tuning and matching of the actuator's characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV2605YZFR Overview

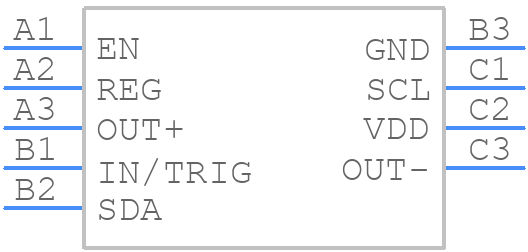

Use the download button to access the DRV2605YZFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV26,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
