DRV2605YZFT - Texas Instruments

Description: Haptic Driver for ERM/LRA with Built-In Library and Smart Loop Architecture

Download DRV2605YZFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

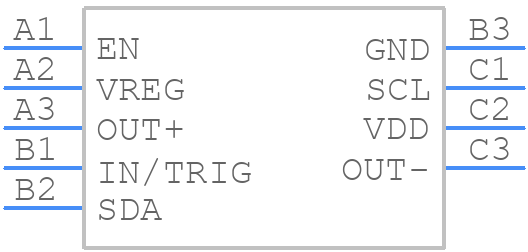

DRV2605YZFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV2605YZFT - Texas Instruments PCB footprint - BGA - BGA - DRV2605YZFR-1
click to zoom
3D Models
DRV2605YZFT - Texas Instruments - 3D model - BGA - DRV2605YZFR-1
click to zoom

DRV2605YZFT Details

  • Manufacturer Part Number:

    DRV2605YZFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    9

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.44 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VBGA

  • Package Equivalence Code:

    BGA9,3X3,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.44 mm

DRV2605YZFT Frequently Asked Questions (FAQs)

  • It is recommended to follow the layout and placement guidelines provided in the datasheet, including keeping the device away from high-current carrying traces, using a solid ground plane, and placing decoupling capacitors close to the device.
  • To optimize LRA performance, ensure the LRA is properly matched to the DRV2605YZFT, adjust the resonance frequency to match the LRA's natural frequency, and adjust the drive voltage and current to achieve the desired vibration amplitude.
  • The maximum voltage that can be applied to the DRV2605YZFT is 5.5V, exceeding this voltage may cause damage to the device.
  • To troubleshoot issues, check the power supply voltage, ensure proper connections, verify the LRA is properly connected and matched, and use an oscilloscope to verify the output waveform and voltage.
  • While the DRV2605YZFT is optimized for LRAs, it can be used with other types of actuators such as ERM (Eccentric Rotating Mass) or CCM (Coin-type Vibration Motor) with proper tuning and matching.
