DRV777PWR - Texas Instruments

Description: 7-bit Integrated Motor and Relay Driver

Download DRV777PWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

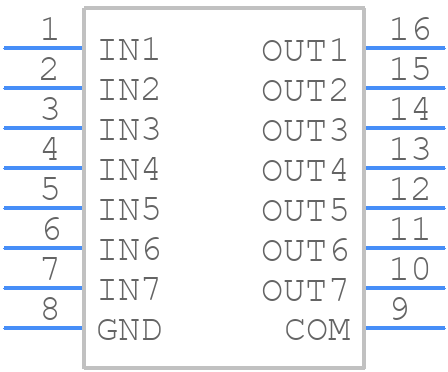

DRV777PWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV777PWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-16
click to zoom
3D Models
DRV777PWR - Texas Instruments - 3D model - Small Outline Packages - TSSOP-16
click to zoom

DRV777PWR Details

  • Manufacturer Part Number:

    DRV777PWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV777PWR Frequently Asked Questions (FAQs)

  • The DRV777PWR can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Use the DRV777PWR's built-in configuration registers to set the motor type, speed, and direction. Consult the datasheet and application notes for specific guidance on configuring the device for your motor.
  • Follow the recommended PCB layout guidelines in the datasheet, including keeping the device away from heat sources and using thermal vias to dissipate heat. Use a heat sink if necessary, and ensure good airflow around the device.
  • Use the device's built-in diagnostic features, such as the fault pin and status registers, to identify the issue. Consult the datasheet and application notes for troubleshooting guidance, and consider using an oscilloscope to monitor the device's signals.
  • No, the DRV777PWR is designed for use with brushless DC (BLDC) motors only. Using it with a brushed DC motor may result in poor performance or damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV777PWR Overview

Use the download button to access the DRV777PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV77, or try a keyword search, such as Motion Control Electronics
