DRV8231ADSGR - Texas Instruments

Description: DRV8231: 4.5-V to 33-V, 600-mΩ, shunt

Download DRV8231ADSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

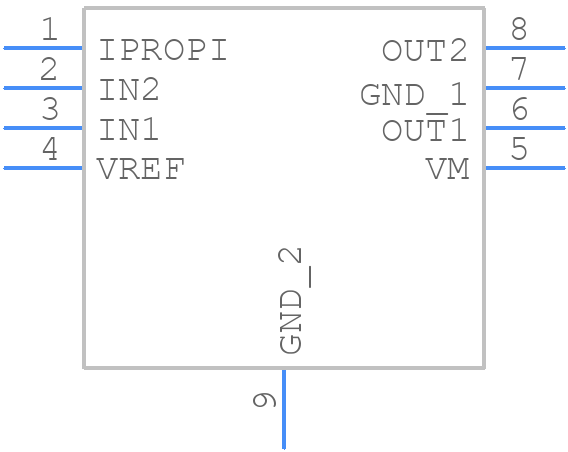

DRV8231ADSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8231ADSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
DRV8231ADSGR - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

DRV8231ADSGR Details

  • Manufacturer Part Number:

    DRV8231ADSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

DRV8231ADSGR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 50-100mV at the maximum motor current.
  • The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use the EN pin to implement a shutdown or standby mode in your application.
  • The DRV8231ADSGR has built-in overcurrent protection, but you can also add external protection components, such as fuses or PTC thermistors, to provide additional protection. You can also implement overcurrent detection and shutdown in your application software.
  • The maximum operating frequency of the DRV8231ADSGR is 100kHz, but it's recommended to operate at a frequency below 50kHz for optimal performance and to minimize EMI.
