DRV8245HQPWPRQ1 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Automotive 40-V, 32-A H-Bridge driver with integrated current sensing and feedback 28-HTSSOP -40 to 125

Download DRV8245HQPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

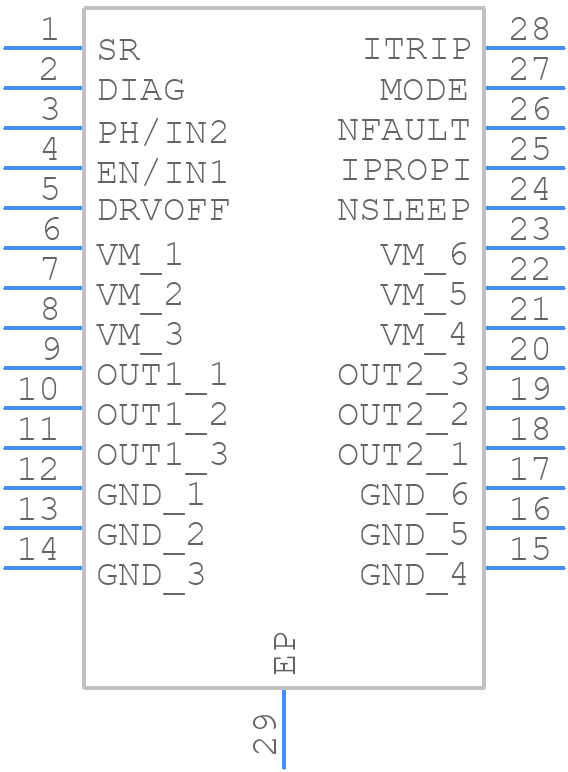

DRV8245HQPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8245HQPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028R_2024
click to zoom
3D Models
DRV8245HQPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP0028R_2024
click to zoom

DRV8245HQPWPRQ1 Details

  • Manufacturer Part Number:

    DRV8245HQPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    32 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

DRV8245HQPWPRQ1 Frequently Asked Questions (FAQs)

  • The DRV8245HQPWPRQ1 can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • TI recommends following a 4-layer PCB stackup with a solid ground plane, placing the DRV8245HQPWPRQ1 near the motor, and using a shielded cable for the motor connections. Additionally, keep the high-current paths short and away from sensitive analog signals.
  • TI recommends using a 10uF to 22uF ceramic capacitor with X7R or X5R dielectric, placed as close as possible to the DRV8245HQPWPRQ1's VCC and GND pins.
  • The DRV8245HQPWPRQ1 is a general-purpose motor driver, and the configuration depends on the specific motor type and application. Refer to the TI application notes and motor driver selection guides for specific configuration recommendations.
  • The DRV8245HQPWPRQ1 has a maximum current rating of 2.5A per phase. To calculate the current limit, use the formula: I_limit = (VCC - V_dropout) / R_sense, where R_sense is the sense resistor value.
