SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
35 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Technology:
BICMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
DRV8245PQPWPRQ1 Frequently Asked Questions (FAQs)
The maximum operating temperature range for the DRV8245PQPWPRQ1 is -40°C to 150°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
To minimize EMI and noise, it's crucial to follow proper PCB layout guidelines. Keep the high-current paths short and away from sensitive analog signals. Use a solid ground plane, and consider using a 4-layer PCB with a dedicated power plane. Additionally, place decoupling capacitors close to the device's power pins and use a common mode choke or ferrite bead to filter the input voltage.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 25V. A low-ESR ceramic capacitor, such as an X5R or X7R type, is recommended due to its low equivalent series resistance (ESR) and high ripple current capability.
The DRV8245PQPWPRQ1 is a general-purpose motor driver, and its configuration depends on the specific motor type and application. For stepper motors, you'll need to configure the device for microstepping mode, while for DC motors, you'll need to set the device for PWM mode. Refer to the datasheet and application notes for specific configuration guidelines and examples.
The maximum current rating for the DRV8245PQPWPRQ1 is 2.5A per phase. To calculate the maximum motor current, you'll need to consider the motor's winding resistance, inductance, and the desired operating frequency. A general rule of thumb is to limit the motor current to 70-80% of the device's maximum current rating to ensure reliable operation and prevent overheating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DRV8245PQPWPRQ1 Overview

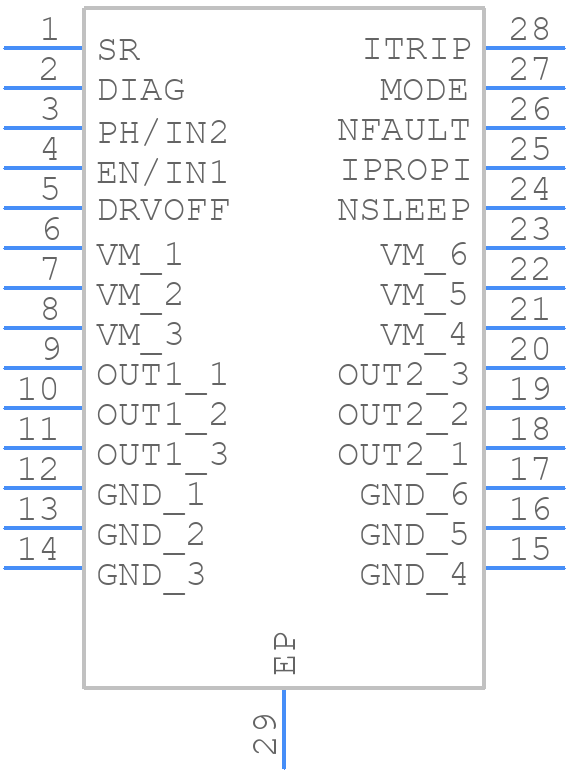

Use the download button to access the DRV8245PQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
