DRV8306HRSMT - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 38V Brushless-DC Smart Gate Driver With Trapezoidal Commutation 32-VQFN -40 to 125

Download DRV8306HRSMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

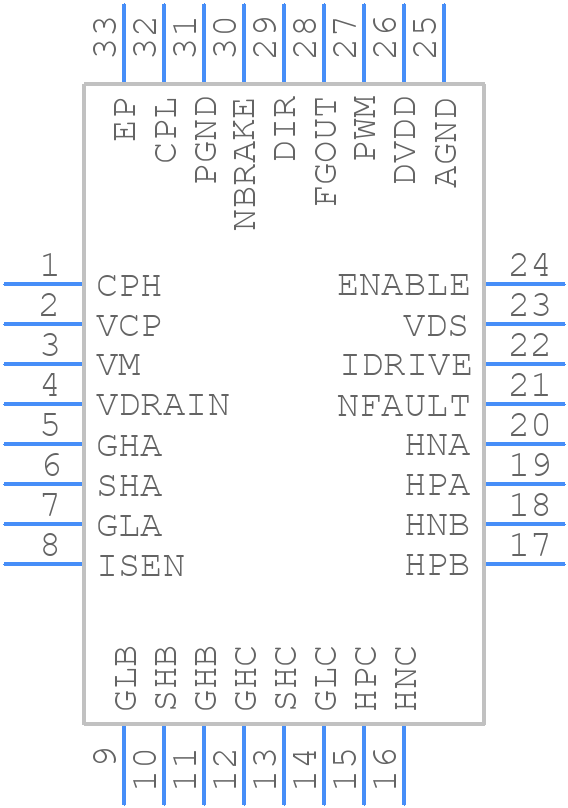

Symbol
DRV8306HRSMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8306HRSMT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DRV8306HRSMT
click to zoom
3D Models
DRV8306HRSMT - Texas Instruments - 3D model - Quad Flat No-Lead - DRV8306HRSMT
click to zoom

DRV8306HRSMT Details

  • Manufacturer Part Number:

    DRV8306HRSMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.15 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    38 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8306HRSMT Frequently Asked Questions (FAQs)

  • The maximum voltage rating for the DRV8306HRSMT is 50V. However, the recommended operating voltage range is 10V to 40V.
  • The RSENSE value depends on the desired overcurrent threshold and the sense resistor power rating. A smaller RSENSE value provides a higher overcurrent threshold, but also increases power dissipation. A good starting point is to use the recommended RSENSE value from the datasheet, and then adjust based on the specific application requirements.
  • The VREG pin is an internal 5V regulator output that can be used to power external circuitry. It can supply up to 10mA of current. Connect a 1uF capacitor between VREG and GND to stabilize the output voltage.
  • The DRV8306HRSMT can be configured for 3-phase or 6-step operation by setting the MODE pin high or low, respectively. For 3-phase operation, tie the MODE pin to VCC. For 6-step operation, tie the MODE pin to GND.
  • The DEADTIME pin sets the dead time between the high-side and low-side FETs. A shorter dead time reduces switching losses, but increases the risk of shoot-through. A longer dead time reduces the risk of shoot-through, but increases switching losses. The recommended dead time value is 100ns to 200ns.
