DRV8307RHAT - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 3-Phase BLDC Controller

Download DRV8307RHAT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

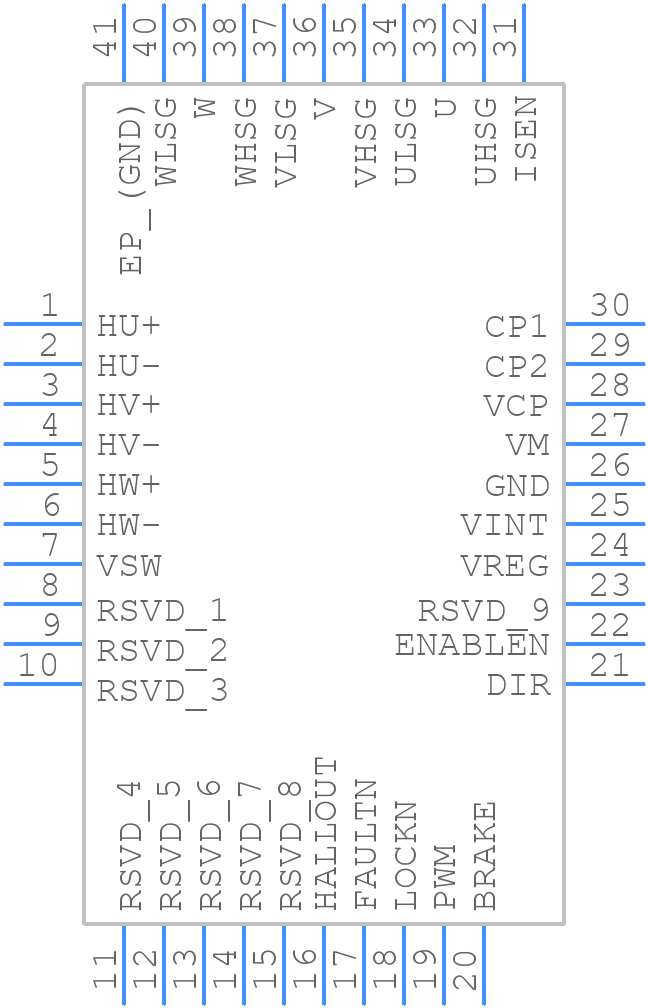

DRV8307RHAT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8307RHAT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA(S-PVQFN_N40)_DRV8307
click to zoom
3D Models
DRV8307RHAT - Texas Instruments - 3D model - Quad Flat No-Lead - RHA(S-PVQFN_N40)_DRV8307
click to zoom

DRV8307RHAT Details

  • Manufacturer Part Number:

    DRV8307RHAT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    18 mA

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    8.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DRV8307RHAT Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 16V. Exceeding this voltage may damage the device.
  • The DRV8307RHAT can be configured for 3-phase or 6-step operation by setting the MODE pin high or low, respectively. Consult the datasheet for specific pin connections and configuration details.
  • The VREG pin is an internal 5V regulator output that can be used to power external circuitry. It can be used to power the MCU or other devices in the system. However, it is recommended to use an external 5V regulator for more robust operation.
  • The DRV8307RHAT has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. However, it is recommended to add external protection components, such as fuses and TVS diodes, to ensure robust operation and protection of the device and the system.
  • A good layout and thermal management are crucial for the DRV8307RHAT. It is recommended to follow the layout guidelines in the datasheet and to use a heat sink or thermal pad to dissipate heat generated by the device.
