DRV8313RHH - Texas Instruments

Description: 2.5A Three Phase Brushless DC Motor Driver (PWM Ctrl)

Download DRV8313RHH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

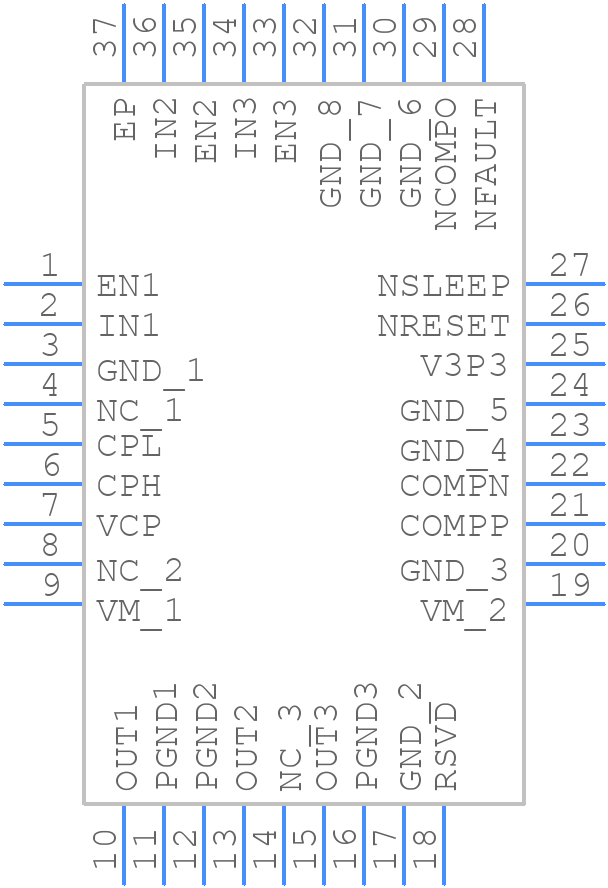

Symbol
DRV8313RHH - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8313RHH - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHH0036C
click to zoom
3D Models
DRV8313RHH - Texas Instruments - 3D model - Quad Flat No-Lead - RHH0036C
click to zoom

DRV8313RHH Details

  • Manufacturer Part Number:

    DRV8313RHH

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    5 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

DRV8313RHH Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 16V. Exceeding this voltage may damage the device.
  • The bootstrap capacitor (CBOOT) should be chosen based on the switching frequency and the current requirements of the system. A general guideline is to use a capacitor with a value between 10nF to 100nF.
  • The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown or standby mode in the system.
  • The DRV8313RHH has a built-in thermal protection feature that shuts down the device when the junction temperature exceeds 170°C. To handle this feature, ensure that the device is properly heatsinked, and implement a thermal monitoring system to detect and respond to thermal shutdown events.
  • A good PCB layout for the DRV8313RHH should minimize the loop area of the high-current paths, keep the power and ground planes separate, and use a solid ground plane to reduce electromagnetic interference (EMI).
