DRV8316RRGFR - Texas Instruments

Description: Motor Drives 40-V max 8-A peak 3-phase motor driver with integrated current sensing

Download DRV8316RRGFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

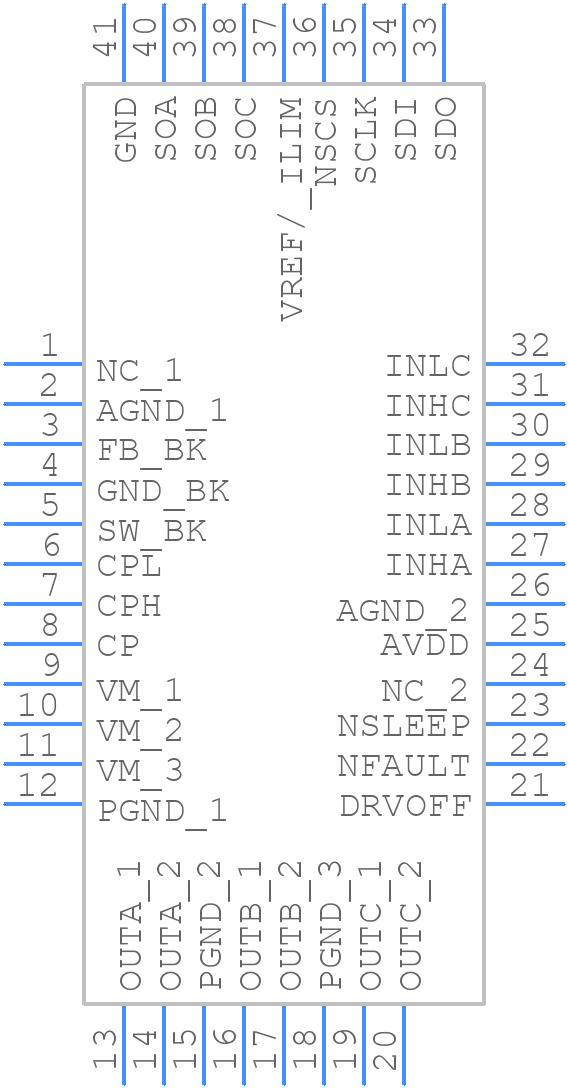

Symbol
DRV8316RRGFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8316RRGFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGF0040E_2023-2
click to zoom
3D Models
DRV8316RRGFR - Texas Instruments - 3D model - Quad Flat No-Lead - RGF0040E_2023-2
click to zoom

DRV8316RRGFR Details

  • Manufacturer Part Number:

    DRV8316RRGFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.19X.27,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    21 mA

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

DRV8316RRGFR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 16V, but it's recommended to keep it below 15V to ensure reliable operation.
  • The DRV8316RRGFR is a general-purpose motor driver and can be configured for different motor types by adjusting the current sense resistors, gate resistors, and dead-time settings. Refer to the application notes and design guides provided by Texas Instruments for specific motor types.
  • The DRV8316RRGFR can handle a maximum current of 3A per phase, but this can be limited by the PCB design, thermal management, and other system-level factors. Ensure proper thermal design and current sensing to prevent overheating and damage.
  • The DRV8316RRGFR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a voltage source. The OCP threshold can be set by adjusting the voltage on the OCP pin. Refer to the datasheet for more information on implementing overcurrent protection.
  • Yes, the DRV8316RRGFR can be used with brushless DC motors. However, it requires additional external circuitry to generate the necessary commutation signals. Texas Instruments provides application notes and design guides for using the DRV8316RRGFR with brushless DC motors.
