DRV8411ARTER - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 1.65-V to 11-V, 4-A dual H-bridge motor driver with IPROPI current regulation

Download DRV8411ARTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

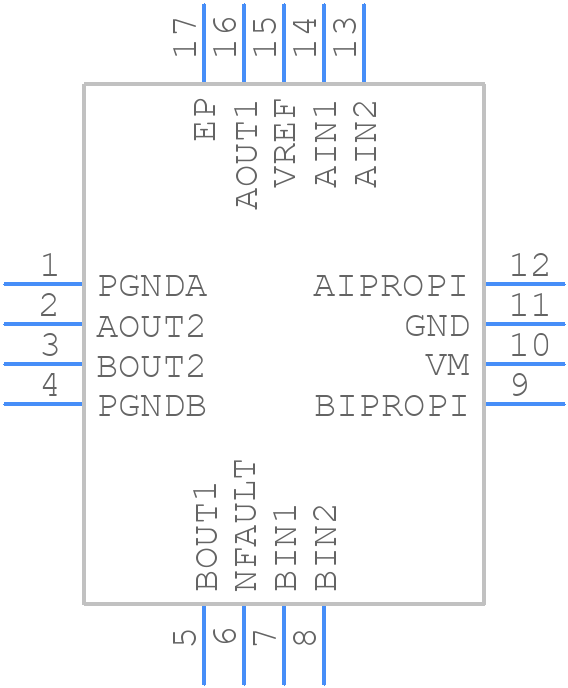

DRV8411ARTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8411ARTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016C
click to zoom
3D Models
DRV8411ARTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016C
click to zoom

DRV8411ARTER Details

  • Manufacturer Part Number:

    DRV8411ARTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.11SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

DRV8411ARTER Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8411ARTER evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistors (Rs) should be chosen based on the desired current sense accuracy and the maximum current rating of the motor. A lower sense resistor value provides better current sense accuracy but increases the power loss in the resistor. TI recommends using 0.1 ohm to 1 ohm sense resistors for most applications.
  • The bootstrap capacitors (CBOOT) should be rated for at least 25V to ensure reliable operation. TI recommends using capacitors with a voltage rating of 30V or higher to provide a margin for voltage spikes and transients.
  • The DRV8411ARTER has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a voltage source. The OCP threshold can be set using an external resistor divider network. TI provides a detailed example of how to implement overcurrent protection in the DRV8411ARTER datasheet.
  • The dead-time setting depends on the specific motor and application requirements. As a general guideline, TI recommends starting with a dead-time setting of 100-200 ns and adjusting as needed to minimize shoot-through currents and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8411ARTER Overview

Use the download button to access the DRV8411ARTER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
