DRV8425EPWPR - Texas Instruments

Description: Bipolar Motor Driver NMOS PWM 28-HTSSOP

Download DRV8425EPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

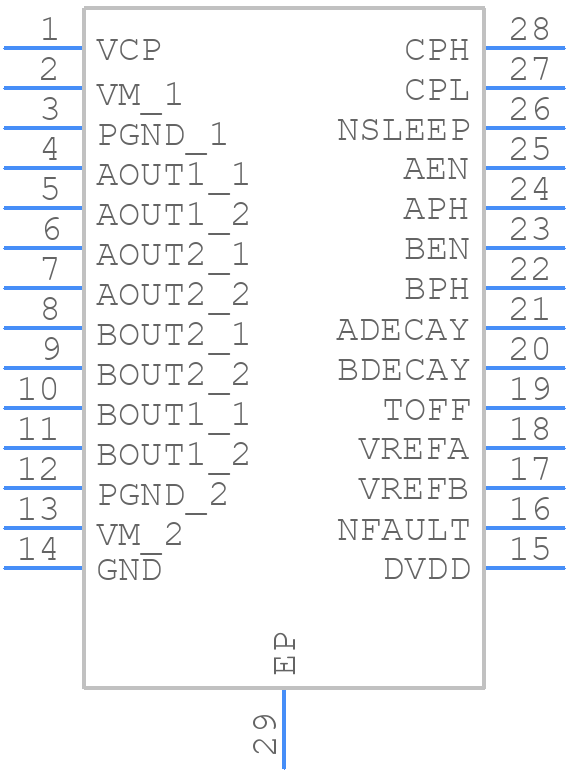

DRV8425EPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8425EPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028M
click to zoom
3D Models
DRV8425EPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0028M
click to zoom

DRV8425EPWPR Details

  • Manufacturer Part Number:

    DRV8425EPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

DRV8425EPWPR Frequently Asked Questions (FAQs)

  • The DRV8425EPWPR can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The DRV8425EPWPR can be configured for half-bridge or three-phase motor control by connecting the appropriate pins and setting the correct logic levels. Refer to the application notes and evaluation modules provided by Texas Instruments for specific configuration examples.
  • The DRV8425EPWPR has a maximum current rating of 2.5A per phase, but the actual current handling capability depends on the application, PCB design, and thermal management.
  • The DRV8425EPWPR has built-in overcurrent and overvoltage protection features, but additional external protection circuits may be required depending on the application. Refer to the datasheet and application notes for guidance on implementing protection circuits.
  • Yes, the DRV8425EPWPR can be used for BLDC motor control, but it requires additional external circuitry and control logic to implement the necessary commutation and control algorithms.
