DRV8425PPWPR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 35V, 2A bipolar stepper or dual brushed motor driver with integrated current sensing

Download DRV8425PPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

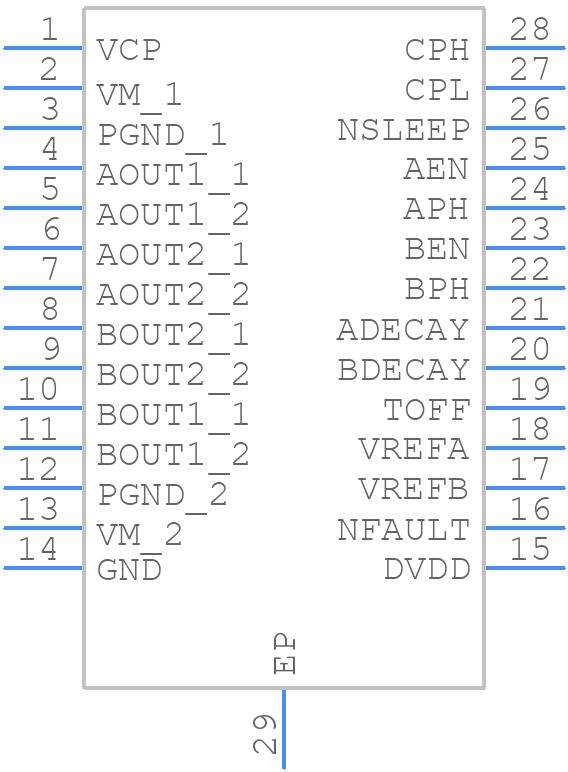

DRV8425PPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8425PPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028M
click to zoom
3D Models
DRV8425PPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0028M
click to zoom

DRV8425PPWPR Details

  • Manufacturer Part Number:

    DRV8425PPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8425PPWPR Frequently Asked Questions (FAQs)

  • The DRV8425PPWPR can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The DRV8425PPWPR can be configured for half-bridge or three-phase motor control by connecting the appropriate pins and setting the correct logic levels. Refer to the application notes and evaluation modules provided by Texas Instruments for specific configuration examples.
  • The DRV8425PPWPR has a maximum current rating of 2.5A per phase, but the actual current handling capability depends on the application, PCB design, and thermal management.
  • The DRV8425PPWPR has built-in overcurrent and overvoltage protection features, but additional external protection components such as fuses, TVS diodes, and resistors may be required depending on the application and system requirements.
  • Yes, the DRV8425PPWPR can be used for BLDC motor control, but it requires additional external components and control logic to implement the necessary commutation and control algorithms.
