DRV8426PPWPR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 35-V, 1.5-A bipolar stepper or dual brushed motor driver with integrated current sensing 28-HTSSOP -40 to 125

Download DRV8426PPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

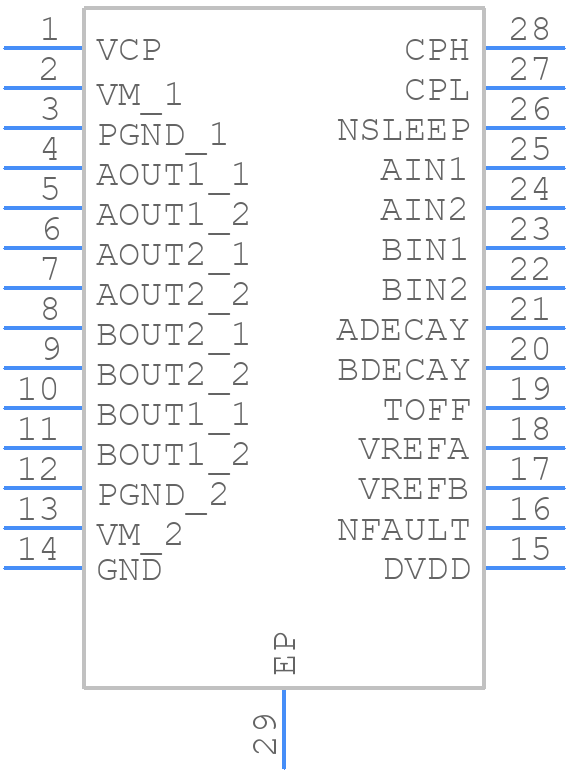

DRV8426PPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8426PPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028M_2021
click to zoom
3D Models
DRV8426PPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0028M_2021
click to zoom

DRV8426PPWPR Details

  • Manufacturer Part Number:

    DRV8426PPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-06

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8426PPWPR Frequently Asked Questions (FAQs)

  • The DRV8426PPWPR can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The DRV8426PPWPR can be configured for half-bridge or three-phase operation by connecting the appropriate pins and setting the MODE pin high or low. Refer to the application notes and evaluation modules for specific configuration examples.
  • The minimum input voltage required for the DRV8426PPWPR to operate is 8V, but it is recommended to use a minimum of 10V for optimal performance.
  • The DRV8426PPWPR has built-in overcurrent and overvoltage protection features, but additional external protection circuits may be required depending on the application. Refer to the datasheet and application notes for specific guidance.
  • Yes, the DRV8426PPWPR can be used in high-frequency applications up to 100 kHz, but the maximum frequency is dependent on the specific application and PCB layout. Refer to the datasheet and application notes for specific guidance.
