DRV8426PRGER - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 35-V, 1.5-A bipolar stepper or dual brushed motor driver with integrated current sensing 24-VQFN -40 to 125

Download DRV8426PRGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

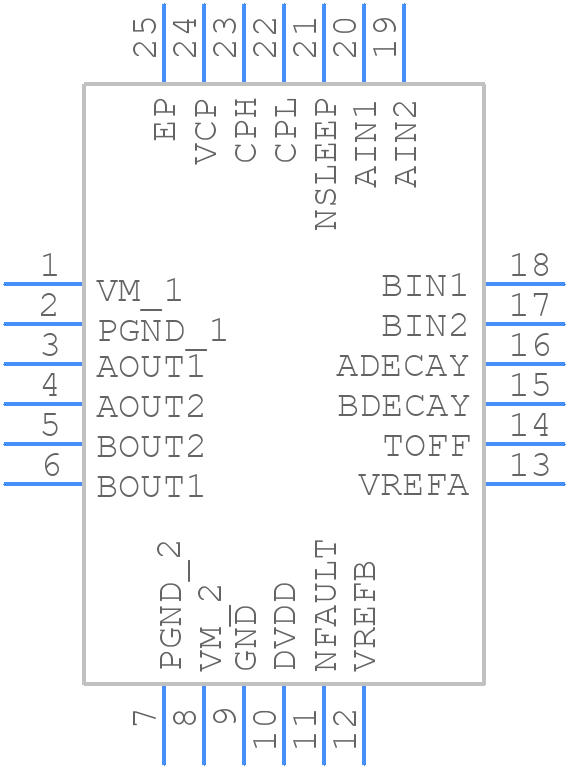

DRV8426PRGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8426PRGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B _ 2021
click to zoom
3D Models
DRV8426PRGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B _ 2021
click to zoom

DRV8426PRGER Details

  • Manufacturer Part Number:

    DRV8426PRGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-06-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    MOTOR SUPPLY VOLTAGE IS 4.5 TO 33 V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8426PRGER Frequently Asked Questions (FAQs)

  • The DRV8426PRGER can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • The sense resistor value depends on the desired current sense accuracy and the maximum current rating of the motor. A smaller sense resistor value provides better accuracy but increases the power loss. A typical value is between 10mΩ to 100mΩ.
  • The internal bootstrap diodes are used to generate the gate drive voltage for the high-side FETs. They reduce the need for external components and simplify the design. However, they also introduce a voltage drop, which affects the overall efficiency and may require additional considerations for high-voltage applications.
  • The DRV8426PRGER has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values determine the overcurrent threshold, and the device will shut down if the current exceeds this threshold.
  • A good PCB layout should ensure that the high-current paths are short and wide, and the thermal pads are connected to a solid ground plane. Thermal management is critical, and a heat sink or thermal interface material may be required to keep the device within its operating temperature range.
