DRV8428PRTER - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers 35V, 1A bipolar stepper or dual brushed motor driver with integrated current sensing 16-WQFN -40 to 125

Download DRV8428PRTER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

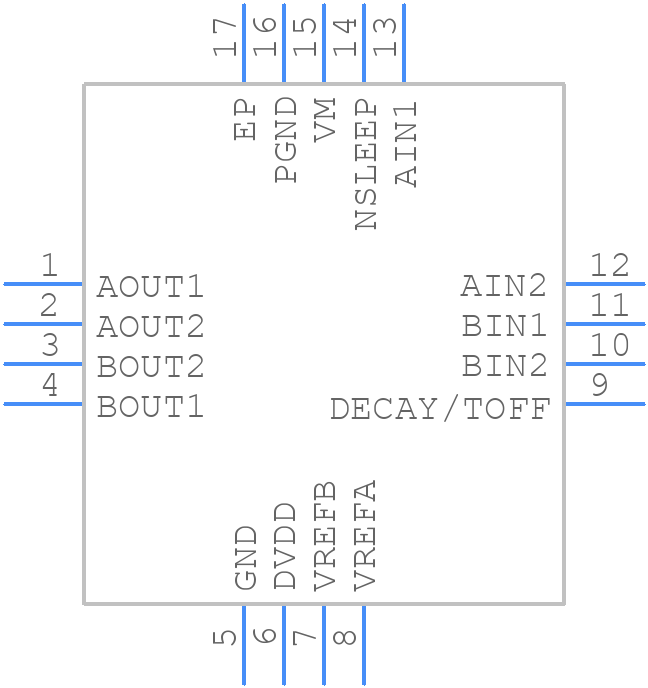

DRV8428PRTER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8428PRTER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom
3D Models
DRV8428PRTER - Texas Instruments - 3D model - Quad Flat No-Lead - RTE (S-PWQFN-N16)
click to zoom

DRV8428PRTER Details

  • Manufacturer Part Number:

    DRV8428PRTER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-07-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    33 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

DRV8428PRTER Frequently Asked Questions (FAQs)

  • The DRV8428PRTER can operate from -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C.
  • Use the DRV8428PRTER's built-in configuration registers to set the motor type, current sense gain, and other parameters according to your motor's specifications. Refer to the device's programming guide for more information.
  • Follow the recommended PCB layout guidelines in the datasheet, including keeping the high-current paths short and away from sensitive analog signals, using a solid ground plane, and adding decoupling capacitors near the device.
  • Use the device's built-in diagnostic features, such as the fault register and current sense outputs, to identify the source of the issue. Also, check the device's power supply, motor connections, and programming configuration for errors or inconsistencies.
  • No, the DRV8428PRTER is designed for use with brushless DC (BLDC) motors only. It does not support brushed DC motor control.
