DRV8434APWPR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 48-V, 2.5-A bipolar stepper motor driver, integrated current sensing & stall detection (GPIO)

Download DRV8434APWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

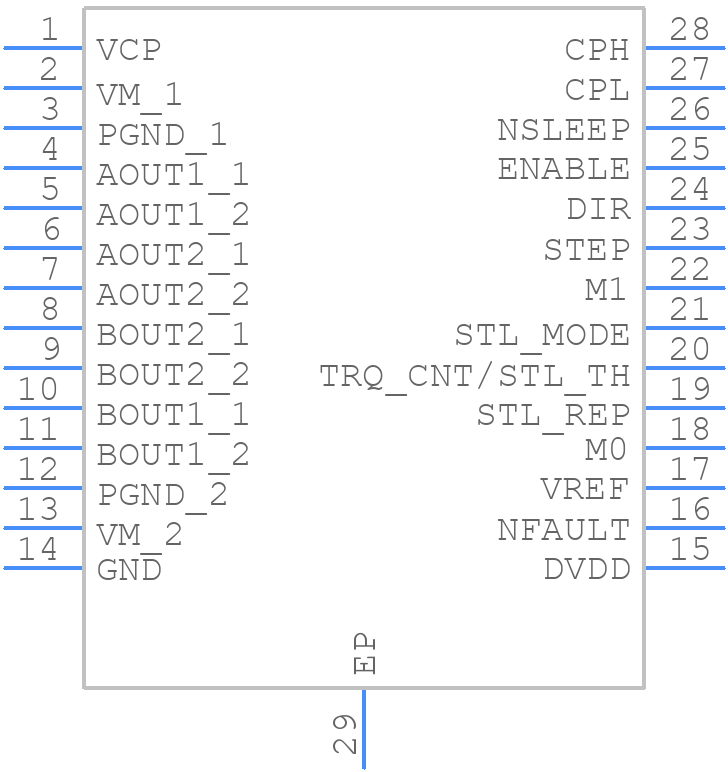

DRV8434APWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8434APWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0028M
click to zoom
3D Models
DRV8434APWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0028M
click to zoom

DRV8434APWPR Details

  • Manufacturer Part Number:

    DRV8434APWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    MOTOR SUPPLY VOLTAGE IS 4.5 TO 33 V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8434APWPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8434APWPR evaluation module documentation, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and noise.
  • Texas Instruments provides a Motor Driver Configuration Tool that helps engineers configure the DRV8434APWPR for their specific motor application, including setting the correct current limits, voltage, and other parameters.
  • The DRV8434APWPR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
  • Texas Instruments provides a troubleshooting guide in the DRV8434APWPR datasheet and application notes, which includes steps to identify and resolve common issues, such as overcurrent or overtemperature faults.
  • The DRV8434APWPR is designed for use with three-phase brushless DC (BLDC) motors, but it can be used with brushed DC motors with some modifications to the control circuitry and motor windings.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8434APWPR Overview

Use the download button to access the DRV8434APWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84, or try a keyword search, such as Motion Control Electronics
