DRV8436ERGER - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 48-V, 1.5-A bipolar stepper or dual brushed motor driver with integrated current sensing 24-VQFN -40 to 125

Download DRV8436ERGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

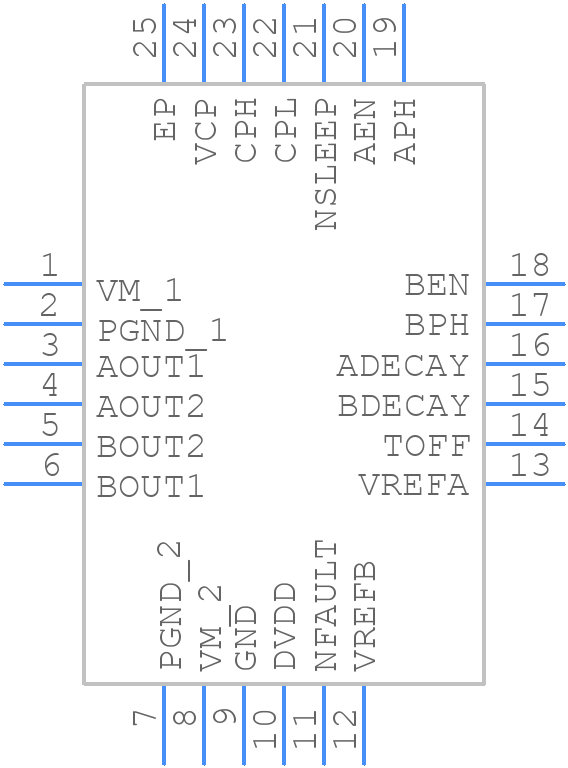

DRV8436ERGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8436ERGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024B
click to zoom
3D Models
DRV8436ERGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024B
click to zoom

DRV8436ERGER Details

  • Manufacturer Part Number:

    DRV8436ERGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    6.5 mA

  • Supply Voltage-Max (Vsup):

    48 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8436ERGER Frequently Asked Questions (FAQs)

  • The DRV8436ERGER can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • TI recommends following the layout guidelines in the DRV8436ERGER datasheet, including keeping the high-current paths short and away from sensitive analog signals, using a solid ground plane, and placing decoupling capacitors close to the device.
  • The recommended input voltage range for the DRV8436ERGER is 8V to 60V, but it can operate from 6V to 65V with reduced performance.
  • The DRV8436ERGER can be configured for different motor types by adjusting the input pins and internal registers. For example, for brushed DC motors, the device can be configured in a unidirectional or bidirectional mode, while for brushless DC motors, the device can be configured in a 3-phase or 6-step mode.
  • The maximum current rating for the DRV8436ERGER is 3A per phase, but the actual current rating depends on the application and the thermal design of the system.
