DRV8462DDVR - Texas Instruments

Description: Bipolar Motor Driver Power MOSFET PWM, SPI 44-HTSSOP

Download DRV8462DDVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

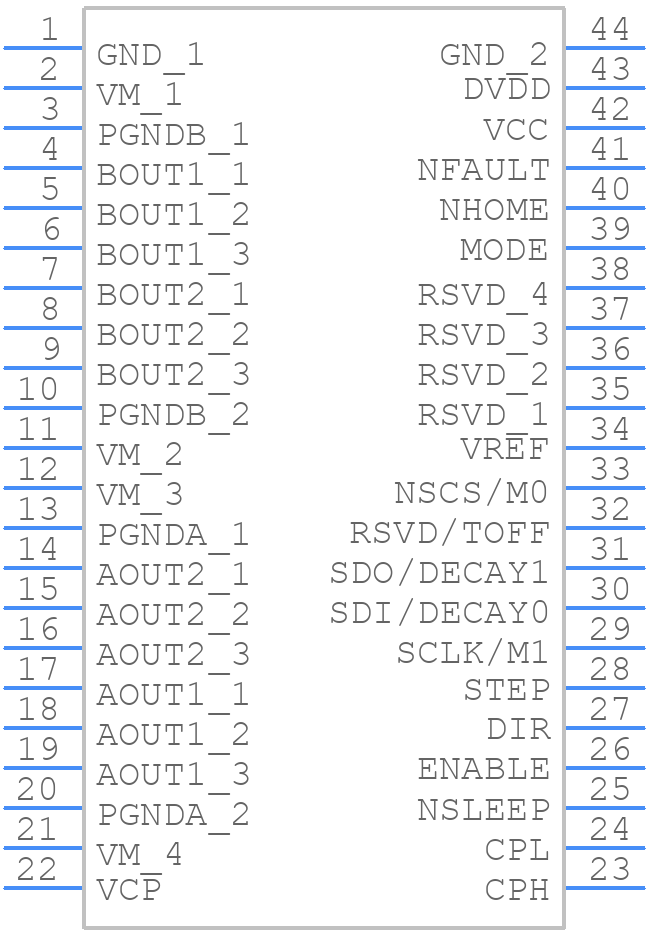

DRV8462DDVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

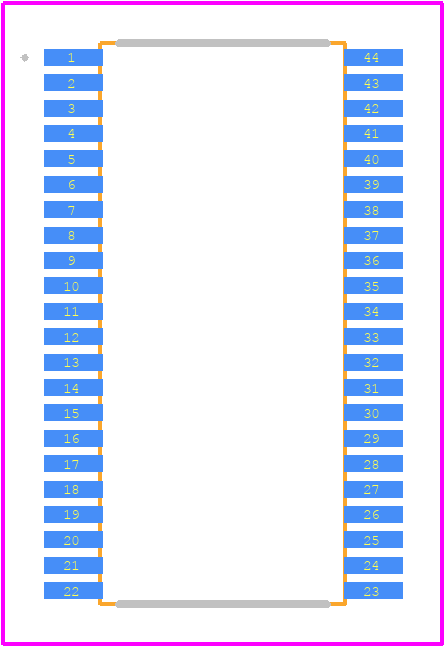

DRV8462DDVR - Texas Instruments PCB footprint - Other - Other - DDV0044E_2025
click to zoom
3D Models
DRV8462DDVR - Texas Instruments - 3D model - Other - DDV0044E_2025
click to zoom

DRV8462DDVR Details

  • Manufacturer Part Number:

    DRV8462DDVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP44,.33

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    11 mA

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

DRV8462DDVR Frequently Asked Questions (FAQs)

  • The DRV8462DDVR can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance.
  • The DRV8462DDVR can be configured for half-bridge or three-phase motor control by connecting the appropriate pins and setting the correct logic levels. Refer to the application notes and evaluation modules provided by Texas Instruments for specific configuration guidelines.
  • The DRV8462DDVR has a maximum current rating of 2.5A per phase, but the actual current handling capability depends on the application, PCB design, and thermal management.
  • The DRV8462DDVR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by adjusting the resistor value. Refer to the datasheet for specific implementation details.
  • Yes, the DRV8462DDVR can be used for BLDC motor control. It has a built-in three-phase bridge driver and can be configured to operate in trapezoidal or sinusoidal commutation modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8462DDVR Overview

Use the download button to access the DRV8462DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV84, or try a keyword search, such as Motion Control Electronics
