DRV8711DCPR - Texas Instruments

Description: Stepper Motor Gate Driver with On-Chip 1/256 Micro-Stepping Indexer and Stall Detect

Download DRV8711DCPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

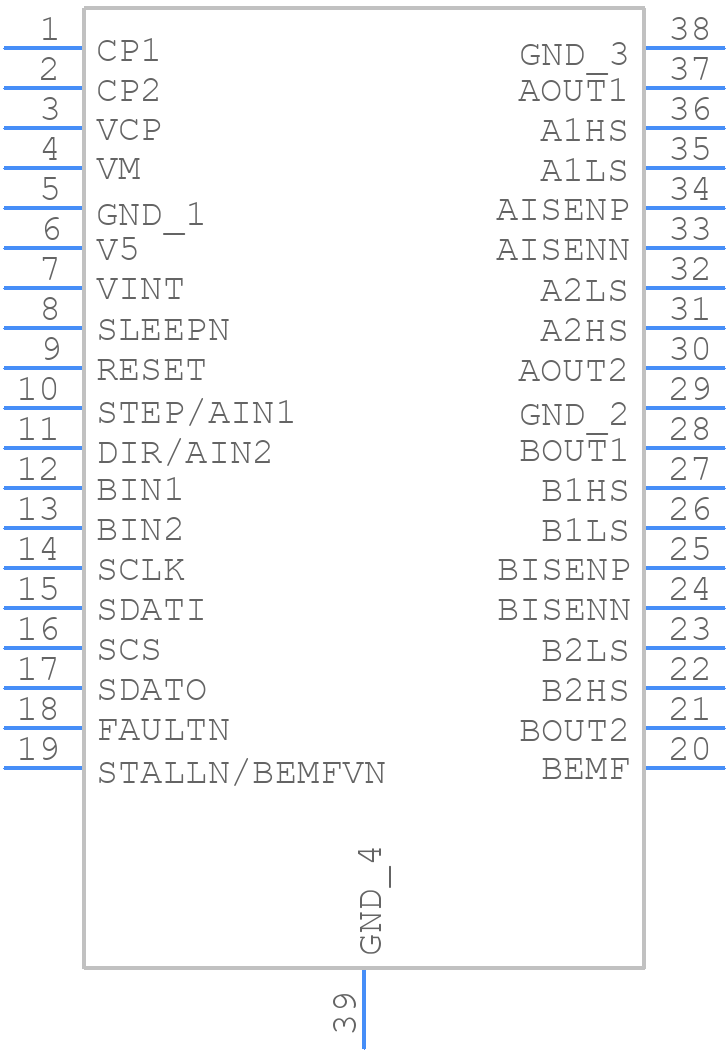

DRV8711DCPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8711DCPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCP (R-PDSO-G38)
click to zoom
3D Models
DRV8711DCPR - Texas Instruments - 3D model - Small Outline Packages - DCP (R-PDSO-G38)
click to zoom

DRV8711DCPR Details

  • Manufacturer Part Number:

    DRV8711DCPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    20 mA

  • Supply Voltage-Max (Vsup):

    52 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8711DCPR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • To configure the DRV8711 for 3-phase brushless DC motor control, connect the 3-phase motor windings to the OUT1-OUT6 pins, and use the SPI interface to configure the device for 3-phase operation. Refer to the application note SLVA945 for more details.
  • The EN (Enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to shut down the device when not in use to reduce power consumption.
  • The DRV8711 has built-in overcurrent protection (OCP) and short-circuit protection (SCP). You can also use external current sense resistors and a comparator to detect overcurrent conditions and shut down the device if necessary.
  • For optimal performance and thermal management, it's recommended to follow the PCB layout guidelines provided in the datasheet, including keeping the power stage components close to the device, using a solid ground plane, and using thermal vias to dissipate heat.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8711DCPR Overview

Use the download button to access the DRV8711DCPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV87, or try a keyword search, such as Motion Control Electronics
