DRV8801AQRMJRQ1 - Texas Instruments

Description: TEXAS INSTRUMENTS - DRV8801AQRMJRQ1 - MOTOR DRIVER, FULL BRIDGE, 2.8A, WQFN-16

Download DRV8801AQRMJRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

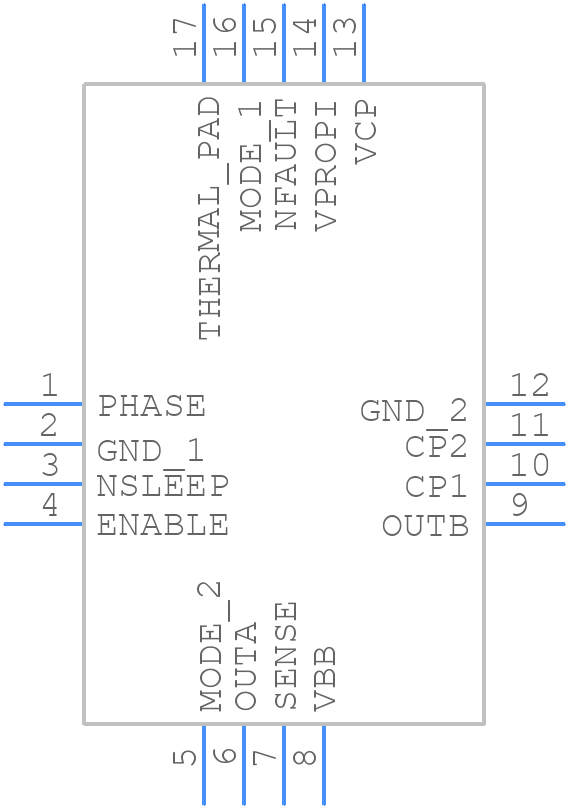

DRV8801AQRMJRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8801AQRMJRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RMJ (S-PWQFN-N16)
click to zoom
3D Models
DRV8801AQRMJRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RMJ (S-PWQFN-N16)
click to zoom

DRV8801AQRMJRQ1 Details

  • Manufacturer Part Number:

    DRV8801AQRMJRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH THE RANGE OF 6.5V TO 36V SUPPLY

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8801AQRMJRQ1 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 35V for reliable operation.
  • The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. A good starting point is to use the formula Rsense = 0.5V / Imax, where Imax is the maximum current you want to limit.
  • The EN pin is an active-high enable input that allows you to turn the driver on and off. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use this pin to implement a shutdown or standby mode in your system.
  • You can use a flyback diode or a TVS diode across the motor terminals to protect the DRV8801 from back-EMF. The diode should be rated for the maximum voltage and current of your motor.
  • The DRV8801 can handle a maximum current of 2.5A, but this value can be limited by the PCB layout, thermal considerations, and the sense resistor value. Always check the thermal performance and current handling of your specific design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
