DRV8804DW - Texas Instruments

Description: 2.0A Unipolar Stepper Motor or 1A Quad Solenoid/Relay Driver (Serial Ctrl)

Download DRV8804DW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

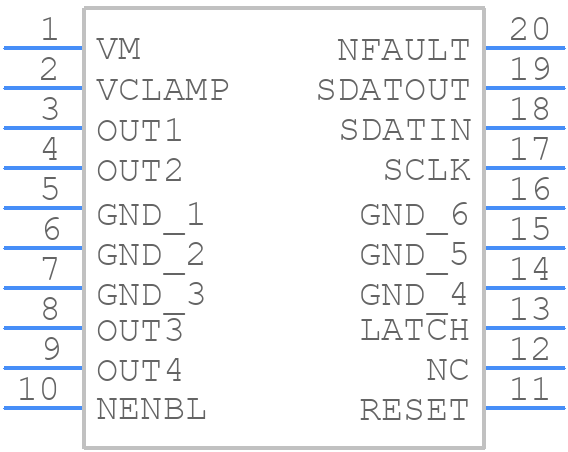

DRV8804DW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8804DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
DRV8804DW - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

DRV8804DW Details

  • Manufacturer Part Number:

    DRV8804DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    2.1 mA

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    8.2 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

DRV8804DW Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The current sense resistor value can be calculated using the formula: RSENSE = (VCS x RATIO) / (ICS x GAIN), where VCS is the current sense voltage, RATIO is the current sense ratio, ICS is the maximum current, and GAIN is the gain of the current sense amplifier.
  • The EN pin is an enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown or standby mode in the system.
  • The DRV8804DW can be configured for half-bridge or full-bridge operation by connecting the appropriate pins. For half-bridge operation, connect the HB pin to VCC, and for full-bridge operation, connect the HB pin to GND.
  • The dead-time generation circuitry is used to prevent shoot-through currents in the bridge. The dead-time can be adjusted by changing the value of the DT pin capacitor and resistor. A larger capacitor and resistor value will increase the dead-time, while a smaller value will decrease it.
