DRV8813PWP - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 2.5A Bipolar Stepper Motor Driver

Download DRV8813PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

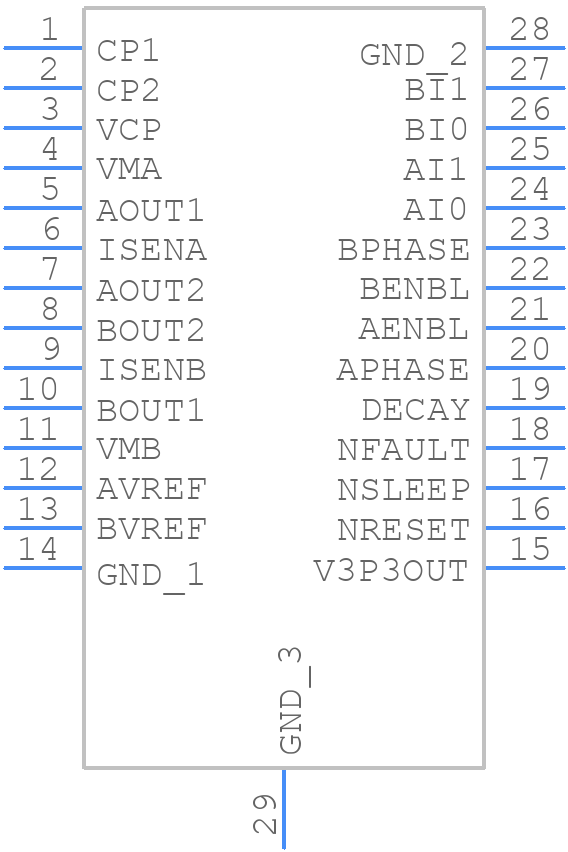

DRV8813PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8813PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G28)
click to zoom
3D Models
DRV8813PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G28)
click to zoom

DRV8813PWP Details

  • Manufacturer Part Number:

    DRV8813PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    8.2 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8813PWP Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 50V, but it's recommended to keep it below 40V for reliable operation.
  • The current sense resistor value can be calculated using the formula: RSENSE = (VSENSE / ITRIP) * (RT / RB), where VSENSE is the sense voltage, ITRIP is the trip current, RT is the total resistance of the sense resistor and RB is the internal sense resistor.
  • The EN pin is an enable input that allows the device to be turned on or off. When EN is high, the device is enabled and operates normally. When EN is low, the device is disabled and all outputs are turned off. It can be used to implement a shutdown or standby mode.
  • The DRV8813PWP can be configured for half-bridge or three-phase operation by connecting the appropriate pins and setting the input signals accordingly. For half-bridge operation, connect the AIN1 and AIN2 pins together and drive them with a single input signal. For three-phase operation, connect the AIN1, AIN2, and AIN3 pins to separate input signals.
  • The maximum switching frequency that can be achieved with the DRV8813PWP is 100 kHz, but it's recommended to keep it below 50 kHz for reliable operation and to minimize losses.
