DRV8833PWP - Texas Instruments

Description: 2A Low Voltage Dual Brushed DC or Single Bipolar Stepper Motor Driver (PWM Ctrl)

Download DRV8833PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

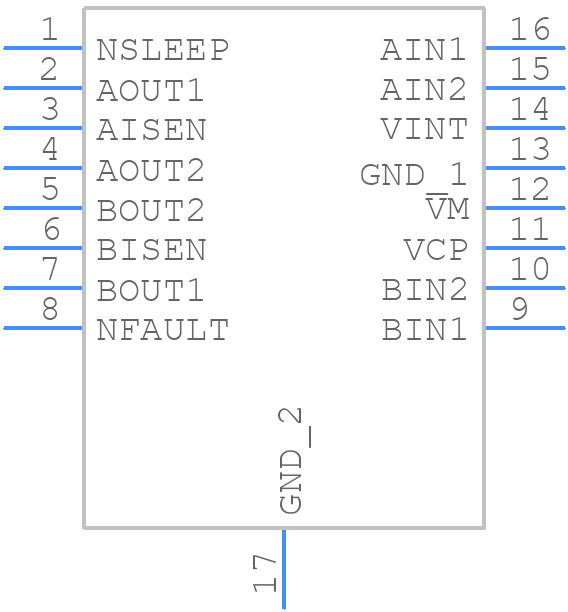

Symbol
DRV8833PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8833PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G16) (1)
click to zoom
3D Models
DRV8833PWP - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G16) (1)
click to zoom

DRV8833PWP Details

  • Manufacturer Part Number:

    DRV8833PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    10.8 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8833PWP Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 15V, but it's recommended to keep it below 12V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to use the formula Rsense = 0.05 / Imax, where Imax is the maximum motor current.
  • The internal voltage regulator generates a 5V supply for the internal logic and can be used to power external circuitry. However, if you need a higher current or a different voltage, you can use an external voltage regulator, but make sure to follow the recommended layout and decoupling guidelines.
  • The OC pin is an open-drain output that asserts low when an overcurrent condition is detected. You can connect a pull-up resistor to a voltage source and a capacitor to filter out noise. The recommended pull-up resistor value is 10kΩ, and the capacitor value depends on the desired filter frequency.
  • The minimum input pulse width required for the IN1 and IN2 inputs is 10ns, but it's recommended to use a pulse width of at least 50ns to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8833PWP Overview

Use the download button to access the DRV8833PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
