DRV8833PWPR - Texas Instruments

Description: 2A Low Voltage Dual Brushed DC or Single Bipolar Stepper Motor Driver (PWM Ctrl)

Download DRV8833PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

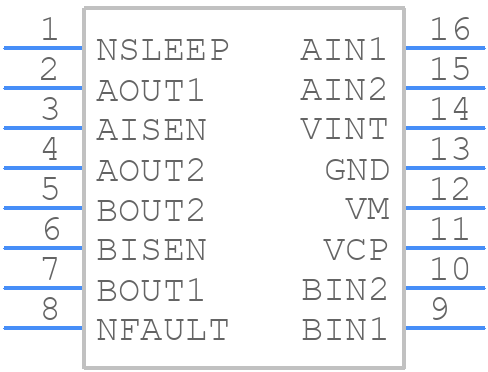

Symbol
DRV8833PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8833PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - ADC128S052CIMTX/NOPB-1
click to zoom
3D Models
DRV8833PWPR - Texas Instruments - 3D model - Small Outline Packages - ADC128S052CIMTX/NOPB-1
click to zoom

DRV8833PWPR Details

  • Manufacturer Part Number:

    DRV8833PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Max (Vsup):

    10.8 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

DRV8833PWPR Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 15V, but it's recommended to keep it below 12V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to use a 0.1 ohm resistor for currents up to 1A and a 0.05 ohm resistor for currents up to 2A. Adjust the value based on your specific application requirements.
  • The EN (enable) pin is used to enable or disable the motor driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. You can use this pin to control the motor driver using a microcontroller or other logic circuit.
  • The DRV8833PWPR has built-in overcurrent protection and thermal shutdown. However, it's still important to add external protection measures such as fuses or PTC resistors to prevent damage from excessive currents. Also, ensure good thermal design and heat sinking to prevent overheating.
  • Yes, the DRV8833PWPR can be used to drive a stepper motor. However, you'll need to use an external controller or microcontroller to generate the step and direction signals. The DRV8833PWPR only provides the motor driver functionality.
