DRV8834RGER - Texas Instruments

Description: 2.2A Low Voltage Stepper w/ 32-step Indexer or Dual Brushed DC Motor Driver (Indexer or PH/EN Ctrl)

Download DRV8834RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

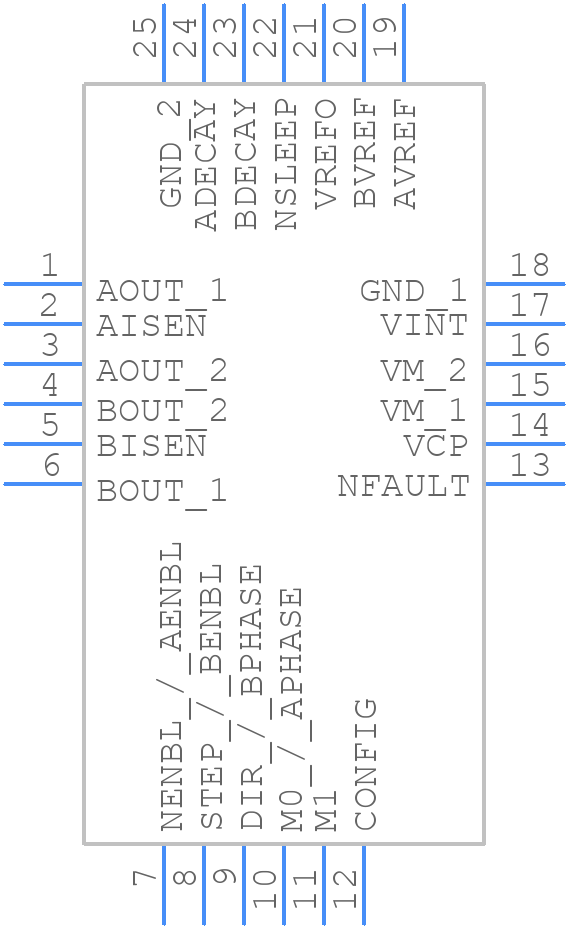

DRV8834RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8834RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DRV8834RGER
click to zoom
3D Models
DRV8834RGER - Texas Instruments - 3D model - Quad Flat No-Lead - DRV8834RGER
click to zoom

DRV8834RGER Details

  • Manufacturer Part Number:

    DRV8834RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    4 mA

  • Supply Voltage-Max (Vsup):

    10.8 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DRV8834RGER Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 15V, but it's recommended to keep it below 12V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 0.1-0.5V at the maximum motor current.
  • The internal voltage regulator generates a 5V supply for the internal logic and can be used to power external circuitry. However, if an external voltage regulator is used, it's recommended to disable the internal regulator by tying the EN pin to GND.
  • The DRV8834RGER has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the sense resistor value.
  • The maximum frequency of the input signals that can be applied to the IN1 and IN2 pins is 100 kHz. However, the actual frequency limit may be lower depending on the specific application and motor characteristics.
