DRV8837DSGT - Texas Instruments

Description: Low-Voltage H-Bridge Driver 1.8A WSON8EP Texas Instruments DRV8837DSGT, MOSFET Power Driver 1.8A Half Bridge, 0 → 11 V, 8-Pin WSON

Download DRV8837DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

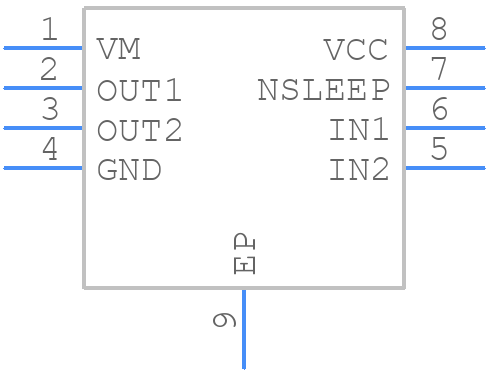

DRV8837DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8837DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - WSON - 0.8 mm Height
click to zoom
3D Models
DRV8837DSGT - Texas Instruments - 3D model - Small Outline No-lead - WSON - 0.8 mm Height
click to zoom

DRV8837DSGT Details

  • Manufacturer Part Number:

    DRV8837DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DRV8837DSGT Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 15V. However, it's recommended to keep it below 12V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to use the formula Rsense = 0.05 / Imax, where Imax is the maximum motor current. Adjust the value based on your specific application requirements.
  • The EN (enable) pin is used to enable or disable the motor driver. When EN is high, the driver is enabled, and when it's low, the driver is disabled. You can use this pin to control the motor driver using a microcontroller or other logic circuit.
  • To protect the DRV8837 from back-EMF, you can add a freewheeling diode (e.g., 1N4001-1N4007) in parallel with the motor. This diode allows the back-EMF to safely dissipate, preventing damage to the driver.
  • The DRV8837 can handle a maximum motor current of 1.5A per channel. However, the actual current handling capability depends on the PCB layout, thermal management, and ambient temperature.
