DRV8838DSGT - Texas Instruments

Description: Low-Voltage Half-Bridge Driver 1.8A WSON Texas Instruments DRV8838DSGT, MOSFET Power Driver 1.8A H Bridge, 1.8 → 7 V, 8-Pin WSON

Download DRV8838DSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

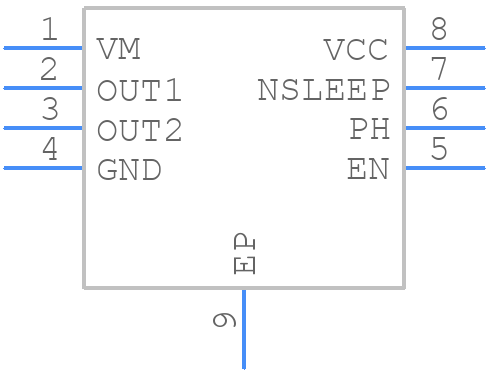

DRV8838DSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8838DSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG0008A 1
click to zoom
3D Models
DRV8838DSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG0008A 1
click to zoom

DRV8838DSGT Details

  • Manufacturer Part Number:

    DRV8838DSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    7 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

DRV8838DSGT Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 15V, but it's recommended to keep it below 12V for reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A general guideline is to choose a sense resistor value that results in a voltage drop of around 50-100mV at the maximum motor current.
  • The EN (enable) pin is used to enable or disable the driver. When EN is high, the driver is enabled, and when EN is low, the driver is disabled. This pin can be used to implement a shutdown or standby mode in your application.
  • The DRV8838DSGT has built-in overcurrent protection, but it's still important to add external protection measures such as fuses or PTC resistors to prevent damage from excessive currents.
  • The maximum frequency of the input signals that can be applied to the IN1 and IN2 pins is 100 kHz, but it's recommended to keep the frequency below 50 kHz for reliable operation.
