DRV8870DDA - Texas Instruments

Description: 3.6A Brushed DC Motor Driver (PWM Ctrl)

Download DRV8870DDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

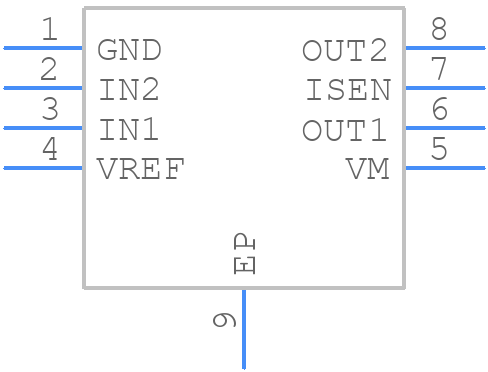

Symbol
DRV8870DDA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8870DDA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom
3D Models
DRV8870DDA - Texas Instruments - 3D model - Small Outline Packages - DDA (R-PDSO-G8)-ren1
click to zoom

DRV8870DDA Details

  • Manufacturer Part Number:

    DRV8870DDA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Mainland China, Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.7 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

DRV8870DDA Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V for reliable operation.
  • The sense resistor value depends on the desired current limit and the voltage drop across the sense resistor. A good starting point is to use the formula Rsense = 0.5V / I_limit, where I_limit is the desired current limit.
  • The EN pin is an active-high enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement a shutdown or standby mode in the system.
  • The DRV8870DDA can be configured for half-bridge or three-phase motor control by connecting the appropriate pins and configuring the input signals. Refer to the application notes and evaluation modules provided by Texas Instruments for more information.
  • The DRV8870DDA can handle switching frequencies up to 100 kHz, but the actual frequency limit depends on the specific application and the device's operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8870DDA Overview

Use the download button to access the DRV8870DDA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics
