DRV8880RHRR - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers 2A Stepper Motor Driver

Download DRV8880RHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

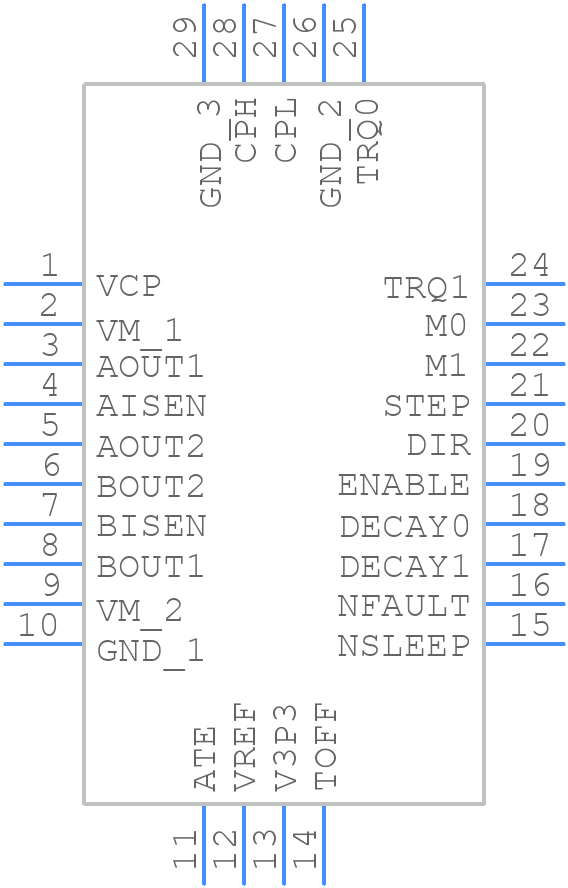

Symbol
DRV8880RHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8880RHRR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
DRV8880RHRR - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

DRV8880RHRR Details

  • Manufacturer Part Number:

    DRV8880RHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.21,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    18 mA

  • Supply Voltage-Max (Vsup):

    45 V

  • Supply Voltage-Min (Vsup):

    6.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

DRV8880RHRR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8880RHRR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistors (RSENSE) should be chosen based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases power loss. TI provides a sense resistor selection guide in the DRV8880RHRR application note (SLVAUH5).
  • The maximum allowed voltage on the VM pin is 40V, but it's recommended to keep it below 35V to ensure reliable operation and prevent damage to the device. Exceeding this voltage may cause the device to malfunction or fail.
  • The DRV8880RHRR has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by selecting the appropriate resistor values. TI provides a detailed OCP implementation guide in the DRV8880RHRR application note (SLVAUH5).
  • The nFAULT pin is an active-low fault indicator that signals when the device detects an overcurrent, overtemperature, or undervoltage condition. It can be used to trigger an interrupt or reset the system. The nFAULT pin can be connected to a microcontroller or a reset generator IC to implement a fault response mechanism.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DRV8880RHRR Overview

Use the download button to access the DRV8880RHRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV88, or try a keyword search, such as Motion Control Electronics
