DRV8886ATRHRT - Texas Instruments

Description: 2A Stepper Motor Driver With Integrated Current Sense and smart tuning technology

Download DRV8886ATRHRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

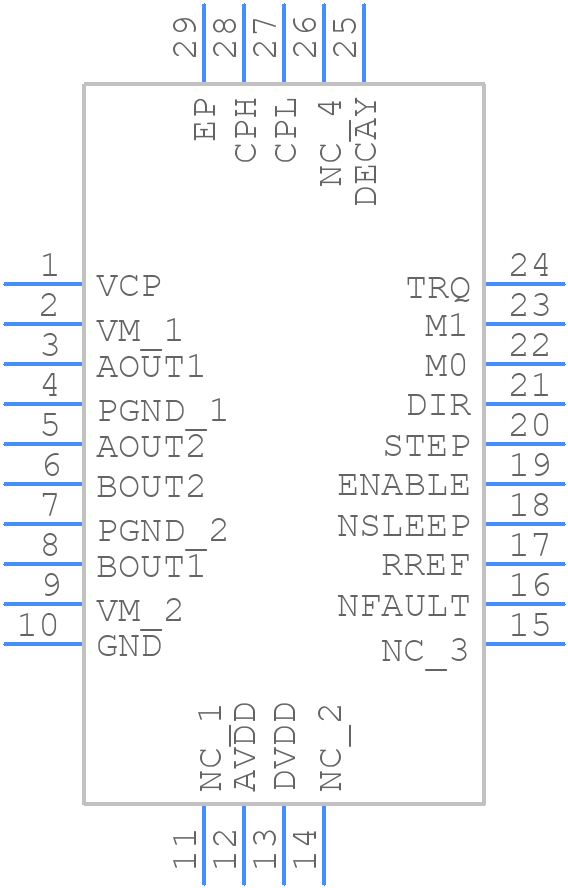

Symbol
DRV8886ATRHRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DRV8886ATRHRT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHR0028A
click to zoom
3D Models
DRV8886ATRHRT - Texas Instruments - 3D model - Quad Flat No-Lead - RHR0028A
click to zoom

DRV8886ATRHRT Details

  • Manufacturer Part Number:

    DRV8886ATRHRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-11-29

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PQCC-N28

  • JESD-609 Code:

    e4

  • Length:

    5.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.14X.22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    37 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

DRV8886ATRHRT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the DRV8886ATRHRT evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
  • The sense resistors (RSENSE) should be chosen based on the motor current and the desired current sense accuracy. A lower sense resistor value provides better current sense accuracy but increases power loss. TI provides a sense resistor selection guide in the datasheet and application notes.
  • The DRV8886ATRHRT has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. The device should be derated for operation above 85°C to ensure reliability and prevent thermal shutdown.
  • The DRV8886ATRHRT has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by adjusting the resistor values. TI provides an application note with detailed guidelines for implementing OCP.
  • The DRV8886ATRHRT is designed for three-phase brushless DC (BLDC) motors, but it can be used with a brushed DC motor with some modifications. However, the device's built-in commutation logic and hall sensor inputs would not be utilized. TI provides an application note with guidelines for using the DRV8886ATRHRT with a brushed DC motor.
