CAN BE USED FOR DC, DC BRUSHLESS, AND STEP MOTOR CONTROL
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
JESD-30 Code:
S-PQCC-N24
JESD-609 Code:
e4
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC24,.16SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Supply Current-Max (Isup):
6.5 mA
Supply Voltage-Max (Vsup):
33 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
DRV8932PRGER Frequently Asked Questions (FAQs)
TI provides a recommended PCB layout in the DRV8932PRGER evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize EMI and thermal issues.
TI provides a DRV8932PRGER motor driver configuration tool that helps engineers select the optimal configuration for their specific motor and application. The tool takes into account motor parameters, such as voltage, current, and inductance, as well as application requirements, like speed and torque.
The DRV8932PRGER has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider the operating temperature range when designing the system.
TI provides a troubleshooting guide for the DRV8932PRGER, which includes steps to identify and resolve common issues. Engineers can also use the device's built-in diagnostic features, such as fault flags and current sense outputs, to help identify the root cause of the problem.
While the DRV8932PRGER is optimized for 12V operation, it can operate with a voltage supply between 6.5V and 18V. However, the device's performance and efficiency may vary depending on the voltage supply. Engineers should consult the datasheet and application notes for specific guidance on operating the device with different voltage supplies.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DRV8932PRGER Overview

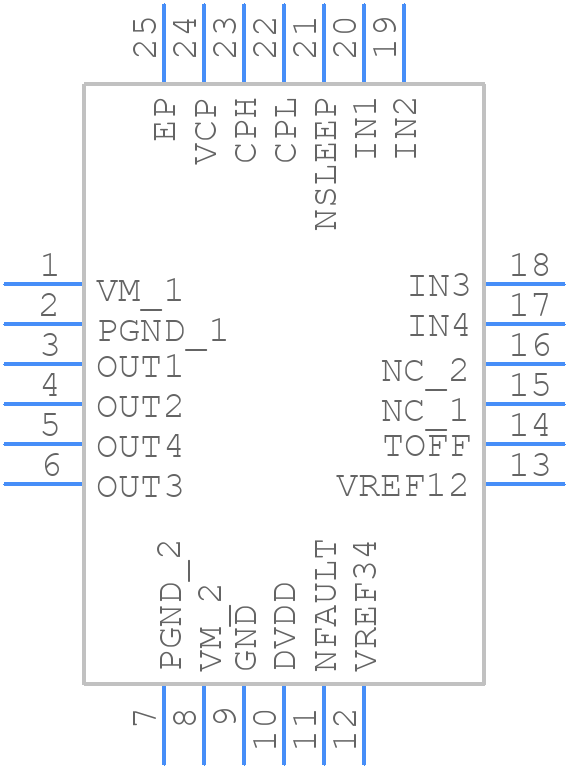

Use the download button to access the DRV8932PRGER schematic symbol, PCB footprint, and 3D model.
