SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
9 mA
Supply Voltage-Max (Vsup):
65 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
DRV8962DDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the DRV8962DDVR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize EMI.
The DRV8962DDVR is a versatile driver that can be configured for different motor types, such as brushed DC, stepper, and brushless DC motors. The configuration is done through the SPI interface, and the specific settings depend on the motor type and application requirements. Refer to the DRV8962DDVR application note for more information.
The DRV8962DDVR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
The DRV8962DDVR has built-in overcurrent protection (OCP) and overvoltage protection (OVP) features. However, it's still recommended to add external protection components, such as fuses and TVS diodes, to ensure robust protection against fault conditions.
Yes, the DRV8962DDVR can operate with a voltage supply range of 6V to 18V, but the recommended operating range is 10V to 15V. However, the device's performance and thermal characteristics may vary depending on the supply voltage, so it's essential to consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DRV8962DDVR Overview

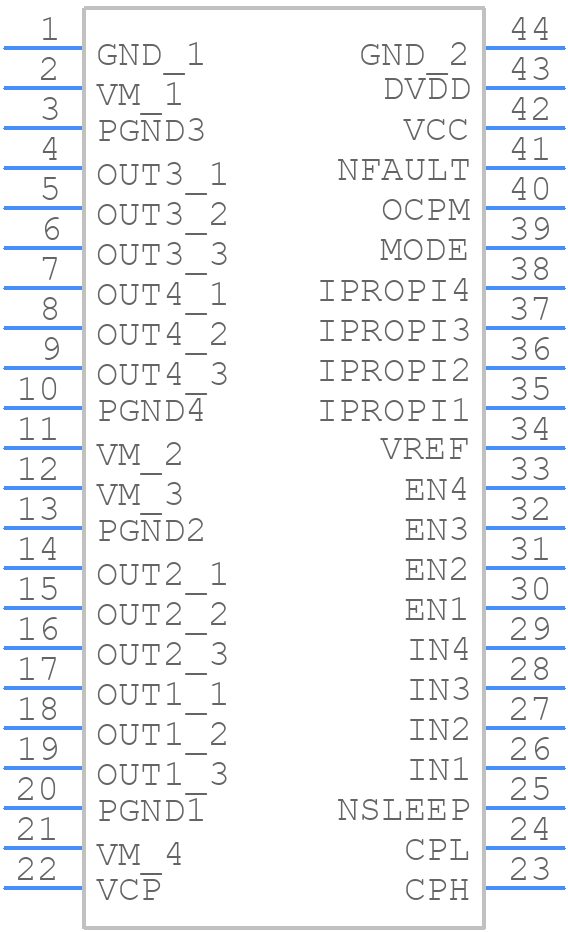

Use the download button to access the DRV8962DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DRV89,
or try a keyword search, such as Motion Control Electronics
