Technical Content
Part Image

DS125DF111SQ - Texas Instruments

Description: Interface - Signal Buffers, Repeaters Low Pwr Multi-Rate Two CH Retimer

Download DS125DF111SQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

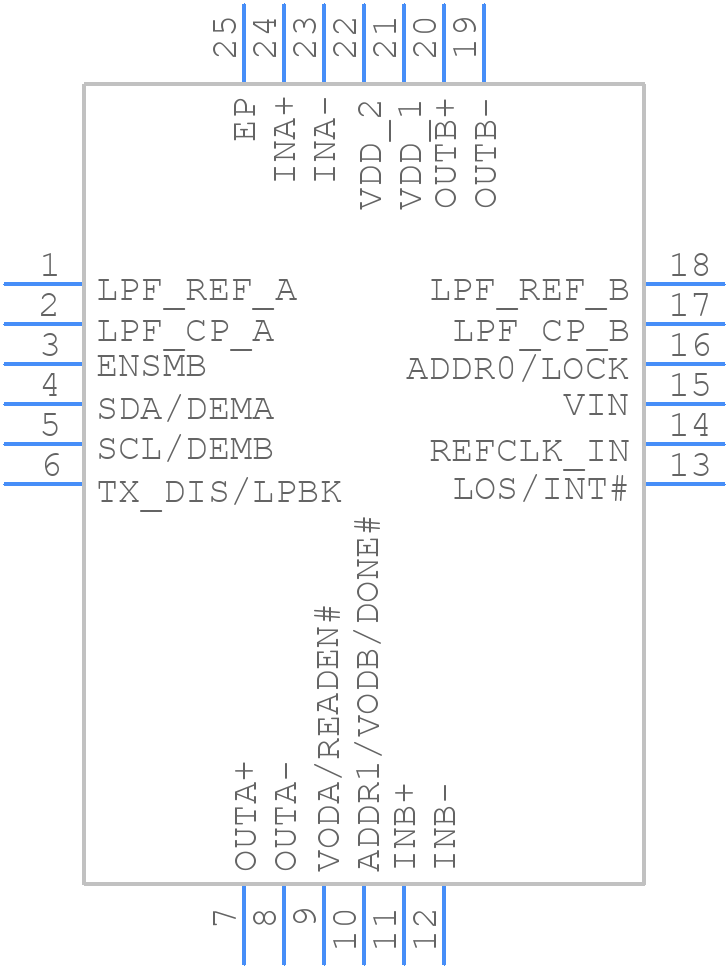

DS125DF111SQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DS125DF111SQ - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024A
click to zoom
3D Models
DS125DF111SQ - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024A
click to zoom

DS125DF111SQ Details

  • Manufacturer Part Number:

    DS125DF111SQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Interface IC Type:

    RETIMER

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

DS125DF111SQ Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a PCB layout with a solid ground plane, 50-ohm transmission lines, and minimal vias and stubs to minimize signal reflections and ensure signal integrity.
  • Proper termination of the output of the DS125DF111SQ involves using a 50-ohm resistor to match the output impedance of the device, and placing the resistor as close to the output pin as possible to minimize signal reflections.
  • The maximum cable length that can be driven by the DS125DF111SQ without signal degradation depends on the specific application and the type of cable used. However, as a general rule, cable lengths up to 10 meters can be driven by the DS125DF111SQ without significant signal degradation.
  • To ensure that the DS125DF111SQ is properly powered and decoupled, use a high-quality power supply with low noise and ripple, and decouple the power pins with 0.1uF and 10uF capacitors to filter out noise and prevent signal degradation.
  • The recommended clock input frequency range for the DS125DF111SQ is 25 MHz to 1600 MHz, with a typical frequency of 125 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DS125DF111SQ Overview

Use the download button to access the DS125DF111SQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS125, or try a keyword search, such as Other Interface ICs
