1 RECEIVER ACTIVE UNDER SHUTDOWN; EXTERNAL CHARGE PUMP
Differential Output:
NO
Driver Number of Bits:
3
High Level Input Current-Max:
0.000001 A
Input Characteristics:
SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-232-E; TIA-232-E; V.28
JESD-30 Code:
R-PDSO-G28
JESD-609 Code:
e0
Length:
10.2 mm
Moisture Sensitivity Level:
4
Number of Functions:
3
Number of Terminals:
28
Operating Temperature-Max:
70 °C
Out Swing-Min:
10 V
Output Low Current-Max:
0.002 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SSOP
Package Equivalence Code:
SSOP28,.3
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
235
Qualification Status:
Not Qualified
Receive Delay-Max:
1000 ns
Receiver Number of Bits:
5
Seated Height-Max:
2 mm
Supply Current-Max:
20 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
20
Transmit Delay-Max:
1000 ns
Width:
5.3 mm
DS14C335MSAX Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias near the device. Additionally, ensure that the input and output traces are well-matched and impedance-controlled.
The DS14C335MSAX requires a specific power sequencing order to prevent damage. Ensure that the VCC supply is powered up before the VCCA supply, and that both supplies are powered down in the reverse order. Additionally, ensure that the input signals are not applied until both supplies are stable.
The maximum cable length supported by the DS14C335MSAX depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. However, it's essential to perform signal integrity analysis and testing to determine the maximum cable length for your specific use case.
To optimize the device's performance for high-frequency operation, ensure that the input and output signals are properly terminated, and that the device is operated within its recommended operating conditions. Additionally, consider using a low-jitter clock source, and ensure that the power supplies are well-regulated and decoupled.
The DS14C335MSAX is a high-speed device that can generate significant heat. Ensure that the device is mounted on a heat sink or a thermally conductive PCB material, and that there is adequate airflow around the device. Additionally, consider using thermal interface materials to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS14C335MSAX Overview

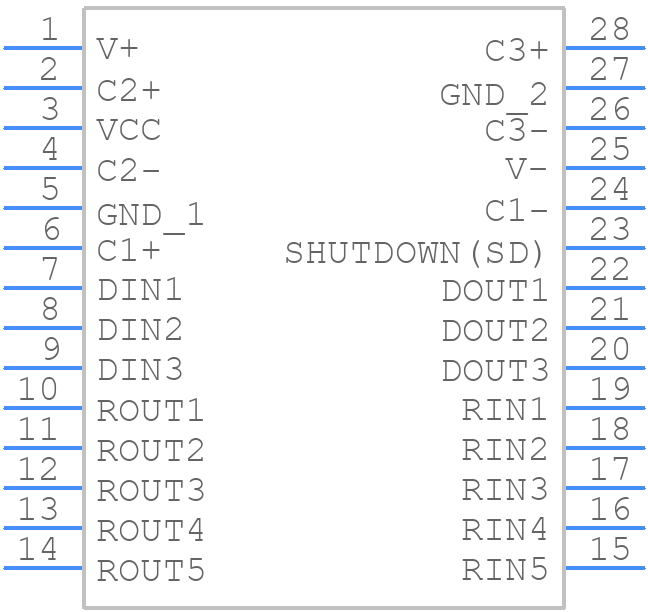

Use the download button to access the DS14C335MSAX schematic symbol, PCB footprint, and 3D model.
