- Part Number DS14C89AM
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-14N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
DS14C89AM Details
-
Manufacturer Part Number:
DS14C89AM
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, MS-012AB, SOIC-14
-
Pin Count:
14
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
DS14C89AM Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the DS14C89AM is -40°C to 85°C. However, it's essential to note that the device can operate up to 125°C for short periods, but this may affect its reliability and lifespan.
-
To ensure reliable data transmission over long distances, it's crucial to follow proper PCB design and layout guidelines, use suitable cables and connectors, and implement error detection and correction mechanisms in your system design. Additionally, consider using repeaters or signal conditioners to boost the signal strength and quality.
-
Yes, the DS14C89AM can be used in a multi-point or multi-drop configuration. However, it's essential to ensure that the total bus capacitance does not exceed the recommended maximum value of 400 pF. You may need to add termination resistors and/or repeaters to maintain signal integrity and prevent reflections.
-
To handle hot-swapping or hot-plugging of devices on the RS-485 bus, it's recommended to use a bus buffer or repeater with built-in hot-swap protection. This will prevent damage to the devices and ensure reliable operation. Additionally, consider implementing a delay or synchronization mechanism to ensure that the bus is properly initialized before data transmission begins.
-
The maximum cable length supported by the DS14C89AM depends on the data rate, cable type, and system design. As a general guideline, the maximum cable length is approximately 4000 feet (1219 meters) at a data rate of 115.2 kbps. However, it's recommended to consult the datasheet and perform simulations or testing to determine the optimal cable length for your specific application.
Trust Checks
System Verified
DS14C89AM Overview

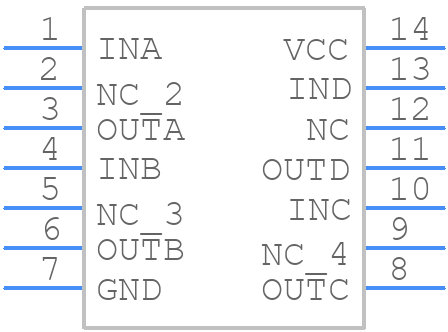

Use the download button to access the DS14C89AM schematic symbol, PCB footprint, and 3D model.
