Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Additionally, it's recommended to use a common mode filter and to decouple the power supply pins with capacitors.
To ensure accuracy, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the thermal sensing element should be properly connected and thermally coupled to the target.
The maximum cable length for the DS2003TMX's digital interface depends on the specific interface used (e.g., I2C, SPI, etc.). As a general rule, it's recommended to keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise. If a longer cable is required, it's recommended to use a shielded cable and to follow proper signal termination and routing techniques.
The POR and BOR features are designed to ensure the device powers up correctly and recovers from brown-out conditions. To handle these features, it's recommended to use a power supply with a slow rise time (less than 10 ms) and to ensure that the power supply voltage is within the specified range. Additionally, the device's reset pin should be properly connected to a pull-up resistor and capacitor to ensure a clean reset signal.
The recommended clock frequency for the DS2003TMX's digital interface depends on the specific interface used. For I2C, the recommended clock frequency is 100 kHz to 400 kHz, while for SPI, it's 1 MHz to 10 MHz. It's essential to follow the specific interface's timing requirements and to ensure that the clock signal is clean and free of noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS2003TMX Overview

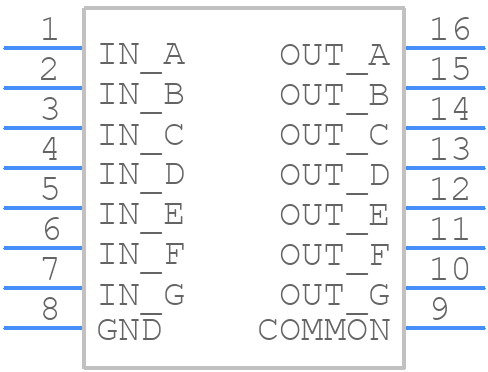

Use the download button to access the DS2003TMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS200,
or try a keyword search, such as Small Signal Bipolar Transistors
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
