A good PCB layout for the DS25BR101TSDE/NOPB involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the load. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the power supply with a 0.1uF capacitor.
The DS25BR101TSDE/NOPB requires a single 2.5V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power supply, and to ensure that the power supply is stable before applying signals to the input pins. There are no specific power sequencing requirements, but it's recommended to power up the device before applying input signals.
The DS25BR101TSDE/NOPB is capable of transmitting data at rates up to 3.2 Gbps. However, the actual data rate achieved will depend on the quality of the signal, the length of the transmission line, and the characteristics of the load.
To troubleshoot issues with the DS25BR101TSDE/NOPB, it's recommended to use a combination of oscilloscopes, logic analyzers, and signal generators to analyze the input and output signals. Additionally, checking the power supply voltage and ensuring that it's within the recommended range can help identify power-related issues.
The DS25BR101TSDE/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to keep the device temperature below 125°C. This can be achieved by using a heat sink, improving air flow, and reducing the power consumption of the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS25BR101TSDE/NOPB Overview

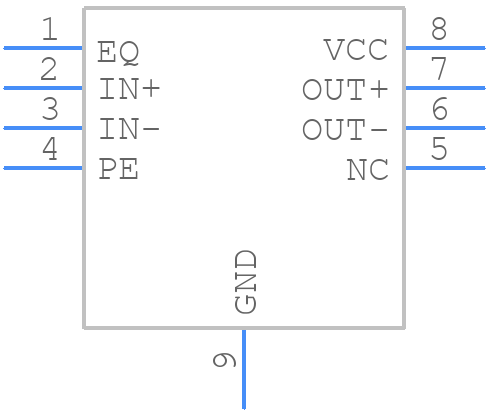

Use the download button to access the DS25BR101TSDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25B,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
