Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed design guidelines, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces.
To ensure reliable operation over the full temperature range, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and avoiding thermal hotspots.
Using a lower voltage supply than recommended may result in reduced performance, increased power consumption, or even device failure. Using a higher voltage supply than recommended may result in reduced reliability, increased power consumption, or even device damage.
To troubleshoot issues with the device, it's recommended to use oscilloscopes, logic analyzers, or other diagnostic tools to analyze signal waveforms, power consumption, and other parameters. Texas Instruments also provides application notes and technical support resources to help with troubleshooting.
Yes, the DS25BR120TSDX/NOPB is a high-speed device that can be susceptible to electromagnetic interference (EMI). To minimize EMI/EMC issues, it's recommended to follow proper PCB design and layout practices, use shielding, and implement EMI filtering and suppression techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS25BR120TSDX/NOPB Overview

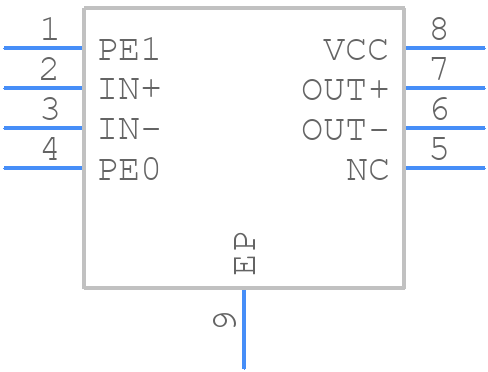

Use the download button to access the DS25BR120TSDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS25B,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
