Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and using impedance-controlled traces. Additionally, ensure that the device is placed near the edge of the board to reduce signal reflections.
The DS34C87TMX requires a specific power sequencing order to prevent damage. Ensure that the VCC supply is powered up before the VCCIO supply, and that both supplies are powered down in the reverse order. Additionally, use a power sequencing controller or a voltage supervisor to ensure a clean power-up and power-down sequence.
The DS34C87TMX has a high thermal design power (TDP) of 1.4W. Ensure good thermal conductivity by using a heat sink or a thermal pad, and provide adequate airflow around the device. Also, consider using thermal interface materials to reduce thermal resistance.
The DS34C87TMX requires a stable clock source to operate correctly. Use a high-quality clock source, such as a crystal oscillator or a clock generator, and ensure that the clock signal is properly terminated and routed. Additionally, use the device's built-in clock synchronization features to minimize clock skew and jitter.
The DS34C87TMX has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, such as ESD-safe workbenches and wrist straps, and ensure that the device is properly grounded during handling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DS34C87TMX Overview

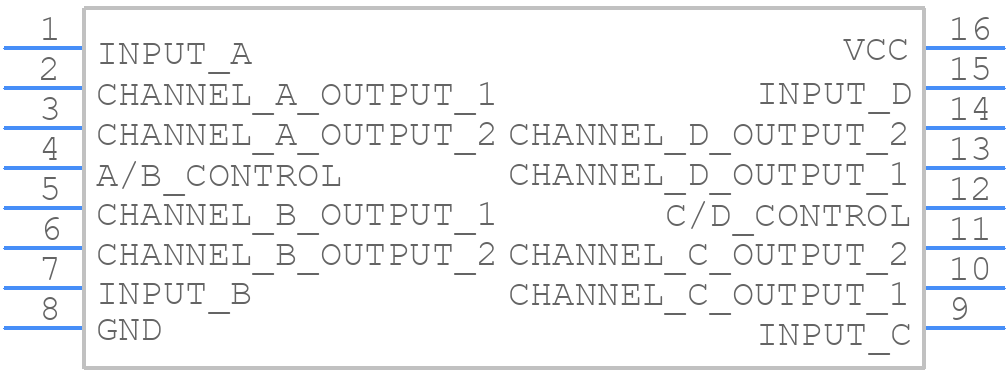

Use the download button to access the DS34C87TMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DS34C,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
