COMMON I/O; 1 RECEIVER ACTIVE UNDER SHUTDOWN; TRISTATABLE RECEIVER
Differential Output:
YES
Driver Number of Bits:
1
High Level Input Current-Max:
0.00002 A
Input Characteristics:
DIFFERENTIAL SCHMITT TRIGGER
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
EIA-485; EIA-422
JESD-30 Code:
R-PDIP-T8
JESD-609 Code:
e0
Length:
9.59 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Out Swing-Min:
1.5 V
Output Low Current-Max:
0.016 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP8,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Receive Delay-Max:
37 ns
Receiver Number of Bits:
1
Seated Height-Max:
5.08 mm
Supply Current-Max:
60.5 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
NO
Technology:
BIPOLAR
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Transmit Delay-Max:
22 ns
Width:
7.62 mm
DS75176BTN Frequently Asked Questions (FAQs)
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, use a common mode choke and ferrite beads to filter out high-frequency noise.
To ensure reliable operation, follow the recommended operating temperature range of -40°C to 125°C. Also, ensure proper thermal management by providing adequate heat sinking and airflow. Consider using thermal interface materials and heat sinks if necessary.
The maximum cable length supported by the DS75176BTN depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length below 10 meters to ensure reliable operation. However, longer cable lengths may be possible with proper signal conditioning and termination.
To troubleshoot issues with the DS75176BTN, use a logic analyzer or oscilloscope to capture and analyze the signal waveforms. Check for signal reflections, ringing, and jitter. Verify that the signal termination and impedance matching are correct. Also, review the PCB layout and ensure that it meets the recommended guidelines.
Yes, the DS75176BTN can be used in redundant or fault-tolerant system designs. However, it's essential to follow proper design guidelines and ensure that the redundant channels are properly isolated and synchronized. Consult the Texas Instruments application notes and design guides for more information.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
DS75176BTN Overview

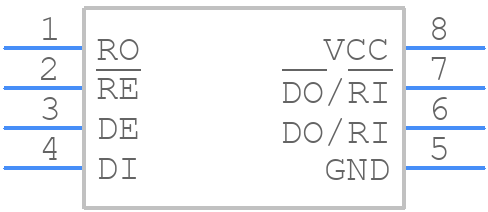

Use the download button to access the DS75176BTN schematic symbol, PCB footprint, and 3D model.
